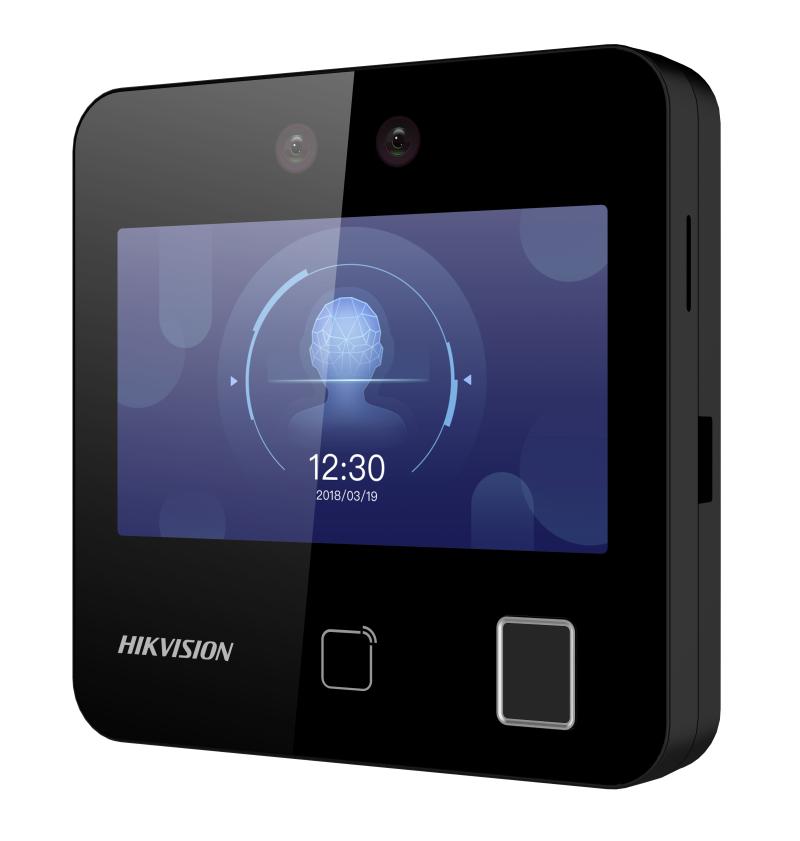

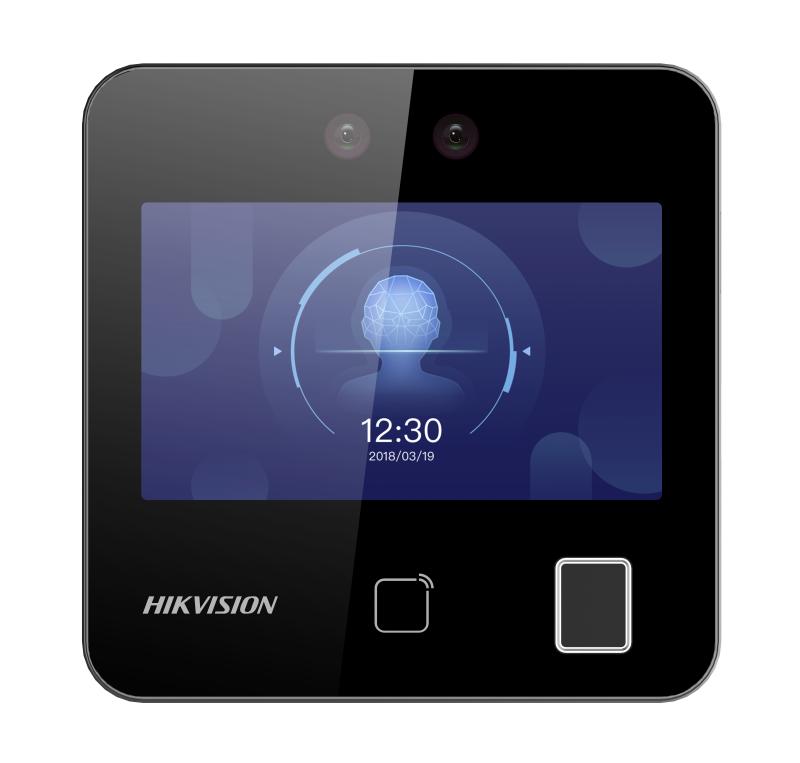

Hikvision Face Recognition Terminal DS-K1T343MFWX

Key Features

• Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
• Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
• Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
• Supports ISAPI, ISUP5.0
• Configuration via the web client
• Face recognition. Distance: 0.3 m to 1.5 m
• Duration < 0.2 s/User
• Accuracy rate ≥ 99%
• Supports face duplicate check, preventing multiple people from using the same face
• Supports attendance-only function
• Supports the following SIP servers: ASTERISK, 3CX, ELASTIX, miniSipServer, Brekeke, OpenSIPs, Kamailio
• Supports Push SDK

Display

• Screen size: 4.3 inch
• Operation method: Capacitive touch screen
• Type: LCD

Video

• Lens: 2
• Resolution: 2 MP

Audio

• Audio quality: Noise suppression and echo cancellation

Network

• Wired network: Support
• Wi-Fi: Support, 2.4 G, 802.11b/g/n

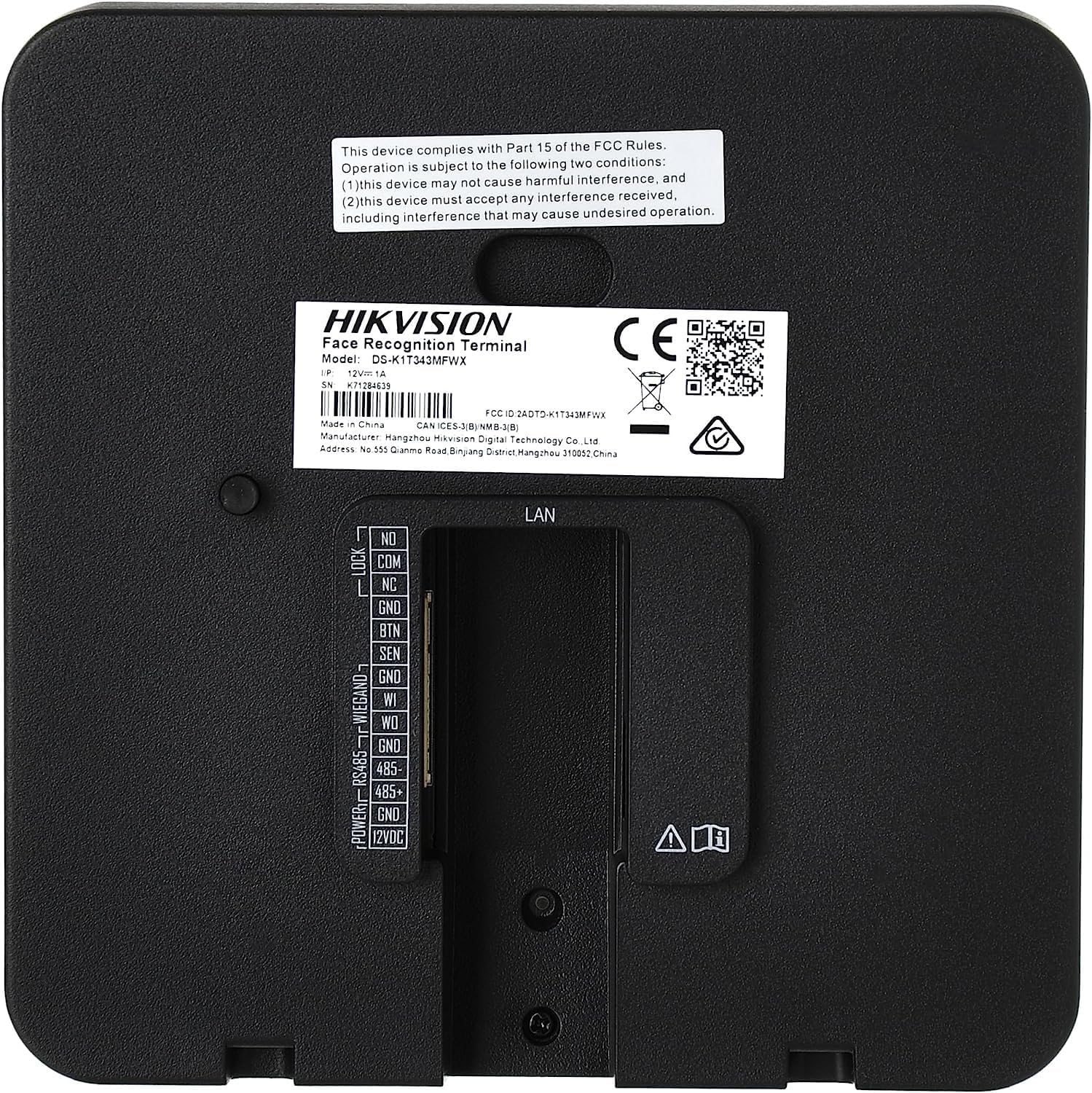

Interface

• Network interface: 1 RJ-45, 10/100 M self-adaptive
• Lock control: 1
• Exit button: 1
• Door contact input: 1
• TAMPER: 1
• RS-485: 1 RS-485 (Half duplex, HIKVISION)
• Wiegand: 1 Wiegand(Hik 26bit,Hik 34bit)
• USB: 1

Authentication

• Card type: M1 card
• Card reading frequency: 13.56 MHz

General

• Power supply: 12 VDC, 1 A (power adapter included)
• Working temperature: -10 °C to 40 °C (14 °F to 104 °F)
• Working humidity: 0 to 90% (No condensing)
• Dimensions: 118.4 mm × 118.4 mm × 21.8 mm (4.66″ × 4.66″ × 0.86″)
• Installation: Wall mounting, base mounting
• Weight
  • Gross weight: 0.71 kg (1.57 lb)
  • Net weight: 0.23 kg (0.51 lb)
• Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese
• Platform: Hik-ProConnect and HikCentral Professional

Function

• Face anti-spoofing: Support
