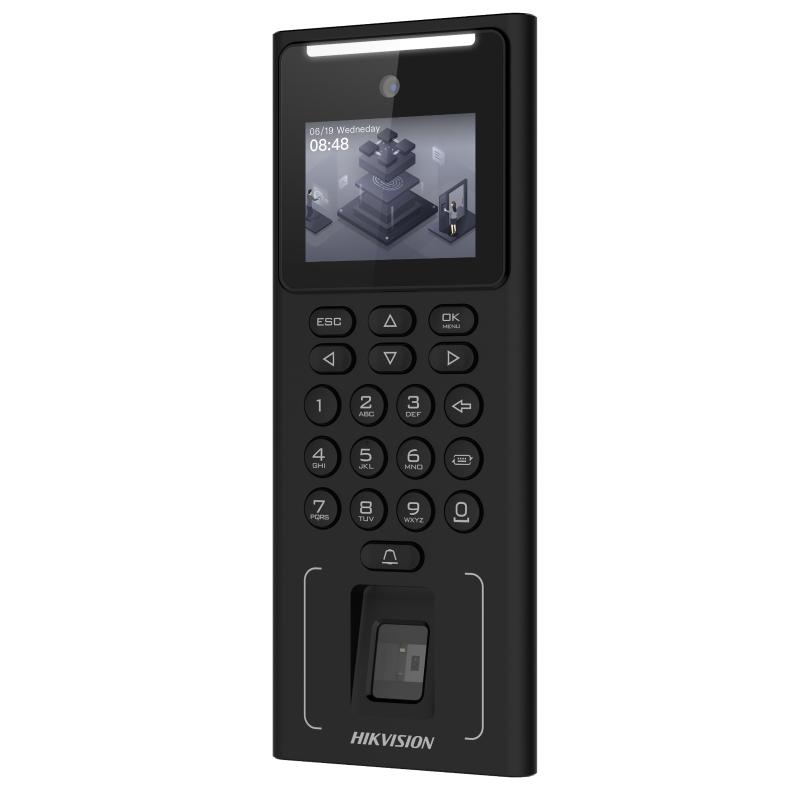

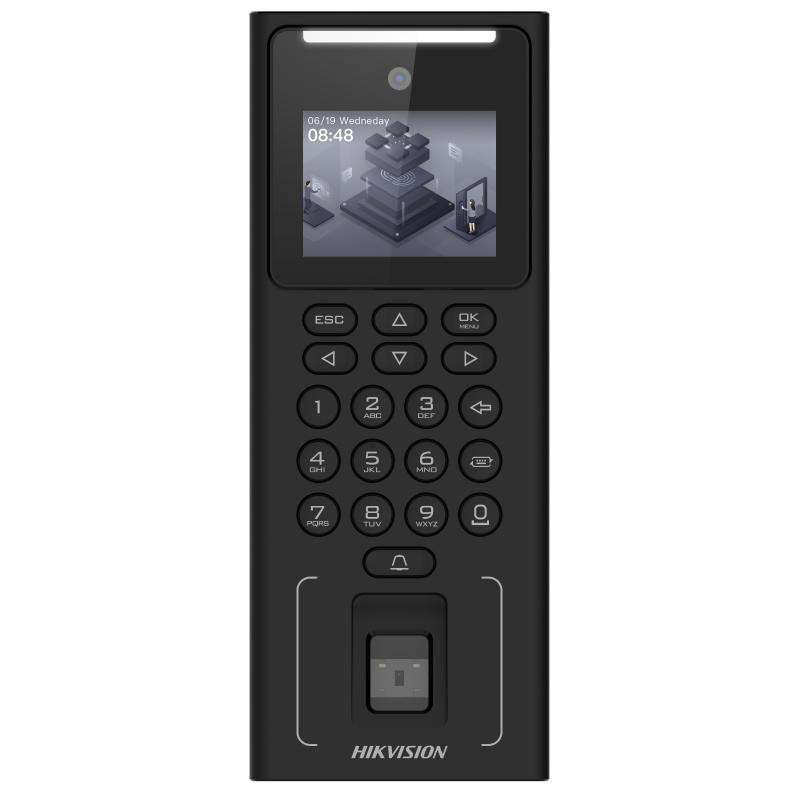

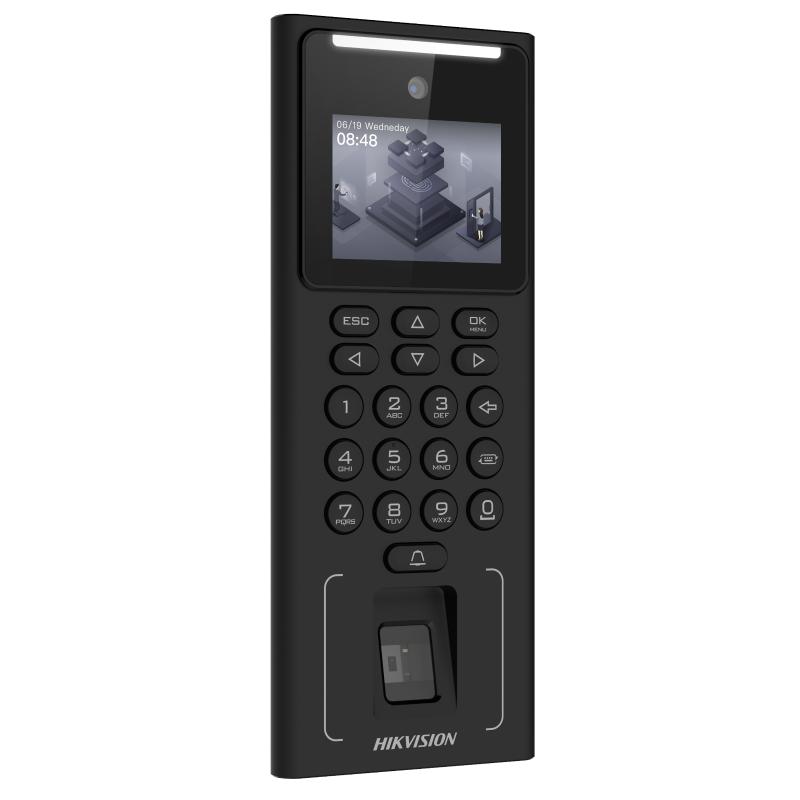

ELECTRONIC / Access ControlHikvision Face Recognition Terminals DS-K1T321MFWX
Value Series Face Access Terminal
Key Features
- 2.4-inch LCD screen, 2 MP lens
- Multiple authentication methods, including face, fingerprint, card (M1 card), and PIN, etc.
- Max. 500 faces, 3000 cards, 3000 fingerprints and 150,000 events
- Face recognition duration < 0.2 s/User
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via the PC web client and mobile web client
- Supports wired network and Wi-Fi (AP mode)
- Supports wiring with secure door control unit or card reader via RS-485
Specifications
| Brand |
Hikvision |
| Model |
DS-K1T321MFWX |
| Operating system |
Linux |
| Capacity |
Up to 500 faces, 3.000 fingerprints and 3.000 cards/passwords |
| Records |
150.000 registers |
| Identification modes |
Facial recognition, fingerprint, card, PIN and/or combinations |
| Proximity card |
MF (13.56 MHz) |
| Screen |
2.4″ Color TFT LCD |
| Screen resolution |
320 x 240 |
| Camera |
2 Mpx with white LED |
| Facial recognition verification time |
< 0.2 sec |
| Facial recognition accuracy |
> 99% |
| Facial recognition distance |
0.3 m to 1.5 m |
| Fingerprint verification time |
< 1 sec |
| Communication |
TCP/IP, WiFi, USB and RS485 |
| Integrated controller |
Door sensor, pushbutton and relay |
| Alarms |
Tamper |
| Software |
iVMS-4200 / iVMS-4200 AC |
| Mobile application |
Hik-Connect |
| Power supply |
DC 12 V / 500 mA máx. |
| Degree of protection |
Valid for interior |
| Temp. operation |
-10º C ~ +55º C |
| Dimensions |
78 (W) x 200 (H) x 28 (D) mm |
| Weight |
220 g |
