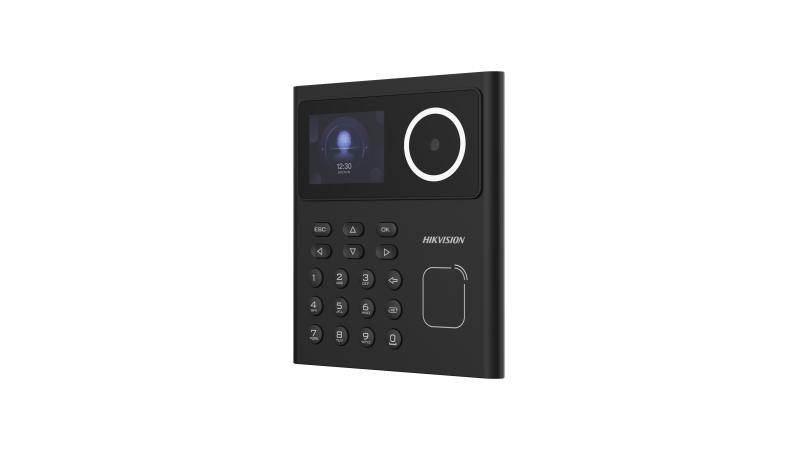

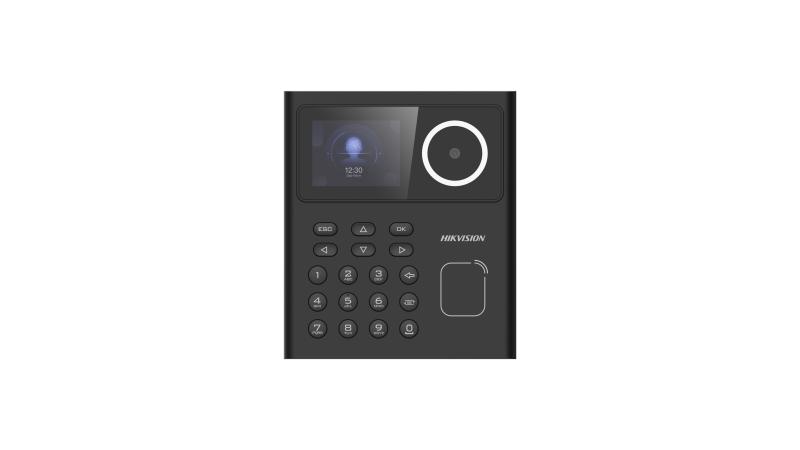

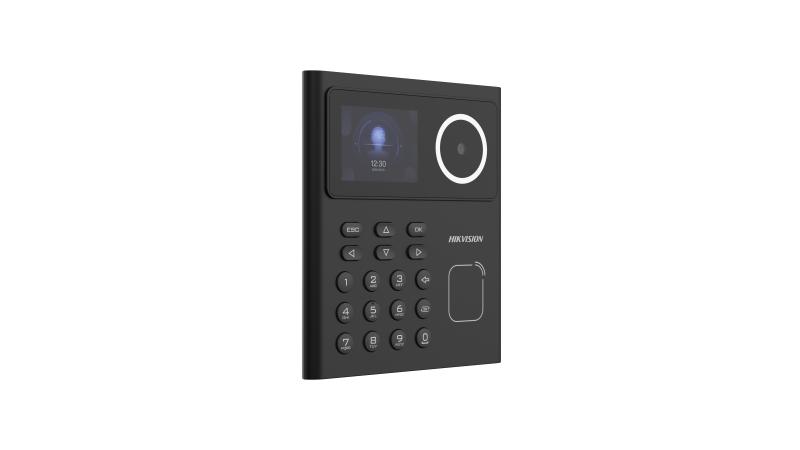

Hikvision Face Recognition Terminal DS-K1T320 EX

Hikvision DS-K1T320EX is a professional access control device designed for modern security projects. This series uses a deep‑learning face recognition engine with support for card and PIN authentication, delivering fast, touchless access for staff and visitors. A built‑in camera and LCD touch screen provide clear feedback at the door, while TCP/IP and, on many models, installation and centralised management through Hikvision software platforms

Key Features

• 2.4-inch LCD screen, 2 MP lens
• Multiple authentication methods, including face, card, PIN etc.
• Supports EM card
• Max. 500 faces, 1,000 cards, and 100,000 events
• Face recognition duration < 0.2 s/User
• Supports ISAPI and ISUP 5.0 protocols
• Configuration via the web client

Network

• Wired network: Support

Interface

• Network interface: 1 RJ-45, 10/100 M self-adaptive
• Lock control: 1
• Exit button: 1
• Door contact input: 1
• TAMPER: 1
• USB: 1

Authentication

• Card type: EM card

General

• Built-in access controller: Support
• Power supply: 12 VDC
• Power consumption: ≤6 W
• Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity: 0 to 90% (No condensing)
• Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese

Function

• Face anti-spoofing: Support
