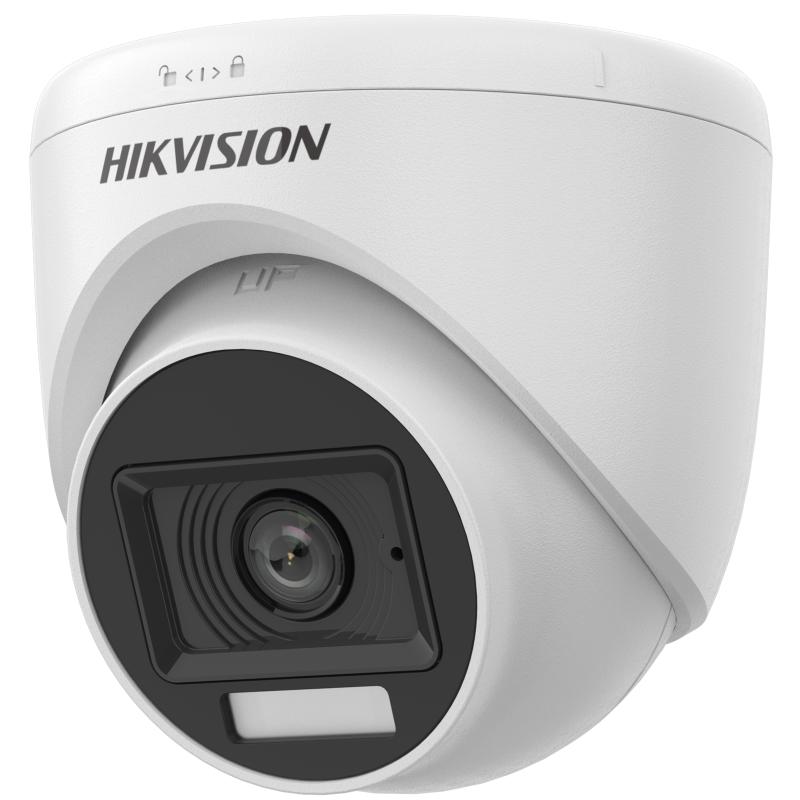

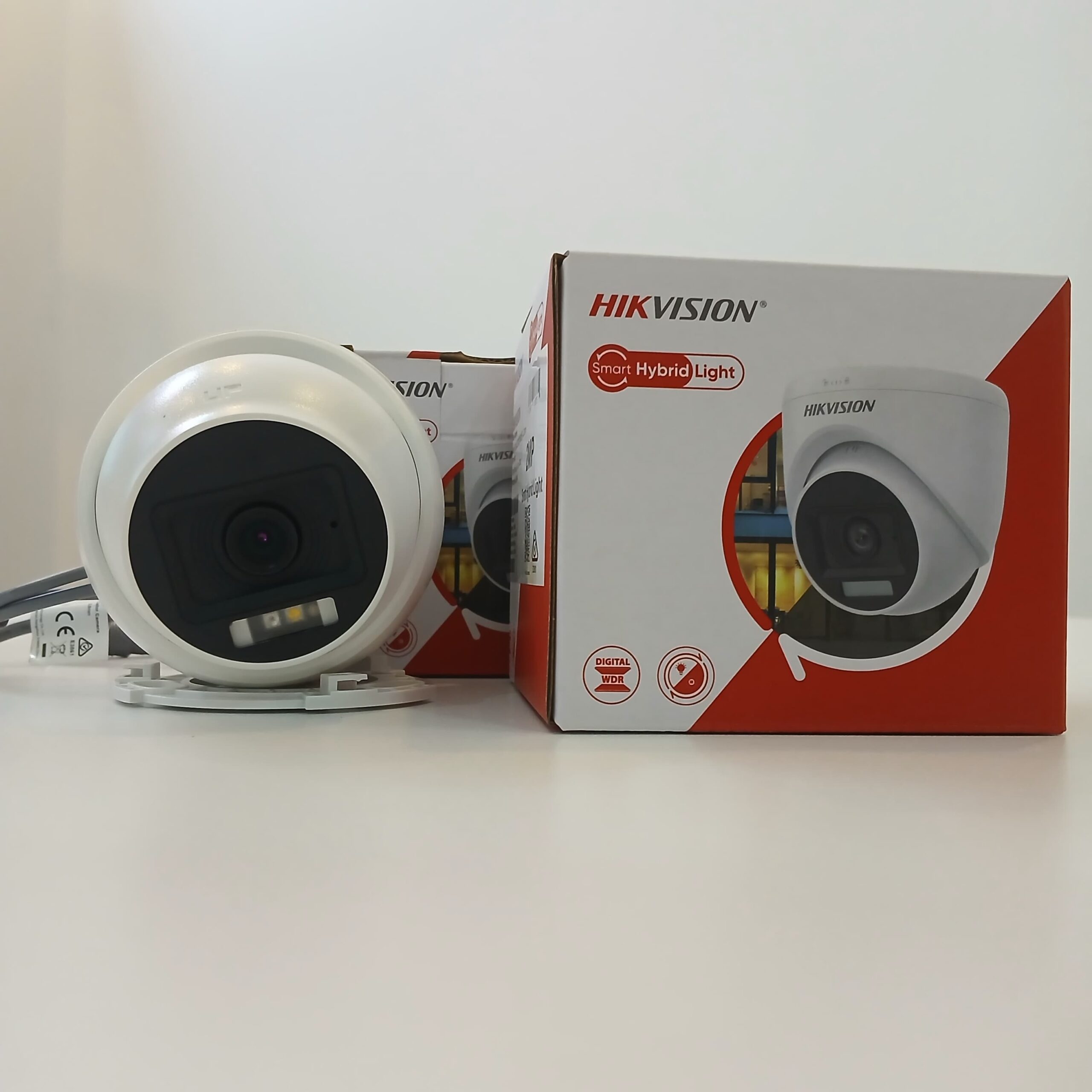

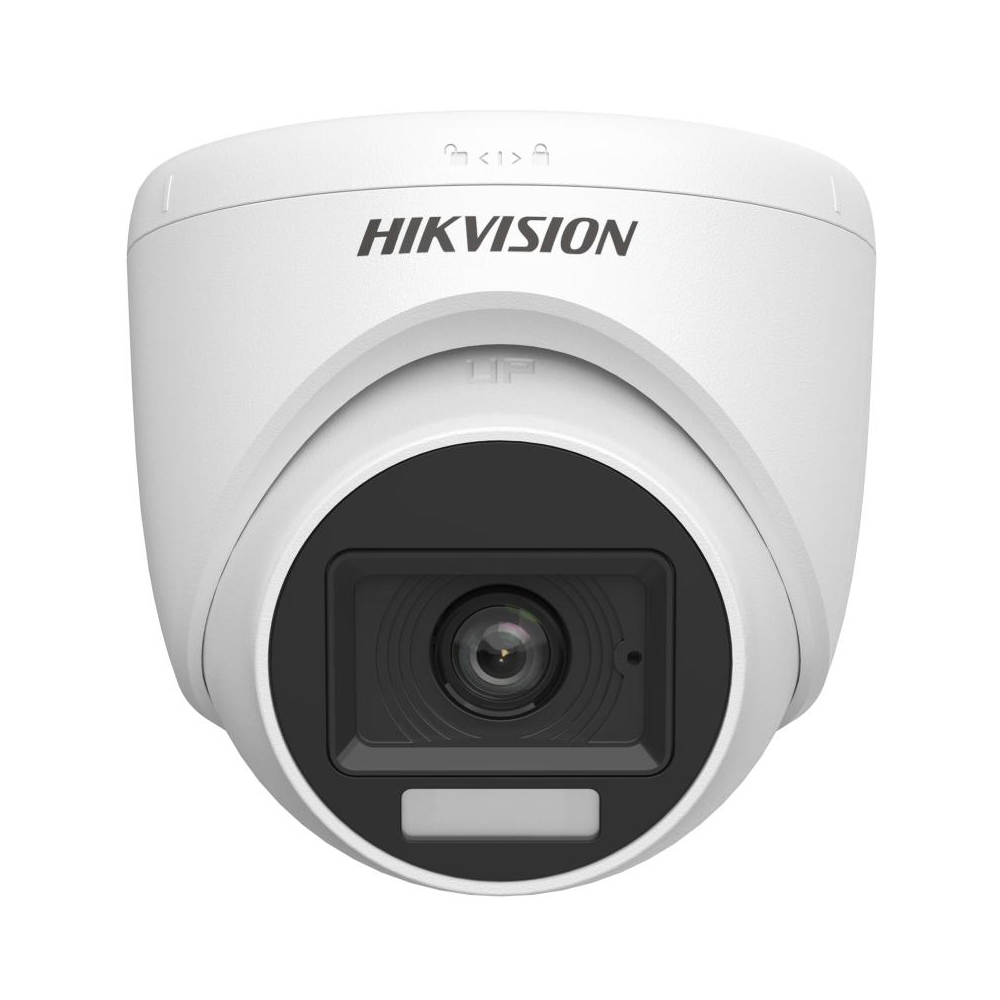

Hikvision ColorVu Turret Camera DS-2CE76D0T-EXLPF

Key Features

• High-quality imaging with 2 MP, 1920 × 1080 resolution
• Smart-Hybrid light, optimize your security with flexible lighting options
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for 4 switchable signals (TVI/AHD/CVI/CVBS)

Camera

• Image Sensor: 2MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
• Signal System: PAL/NTSC

Lens

• Lens Type: Fixed focal lens, 2.8 and 3.6 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°

  3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°

• Lens Mount: M12

Illuminator

• Supplement Light Type: White Light; IR
• Supplement Light Range

  IR: Up to 20 m

  White Light: Up to 20 m


• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• Image Settings: Brightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080p @ 30 fps, 1080p @ 25 fps

  AHD: 1080p @ 30 fps, 1080p @ 25 fps

  CVI: 1080p @ 30 fps, 1080p @ 25 fps

  CVBS: PAL/NTSC

• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: DWDR/BLC/HLC/Global
• White Balance: Auto/Manual
• AGC: Yes

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Material: Plastic
• Dimension: Ø85 mm × 84.6 mm (3.35″ × 3.33″)
• Weight: Max. 150 g (0.33 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
• Communication: HIKVISION-C
• Language: English
• Power Supply

  12 VDC ± 25%, Max. 3.2 W
