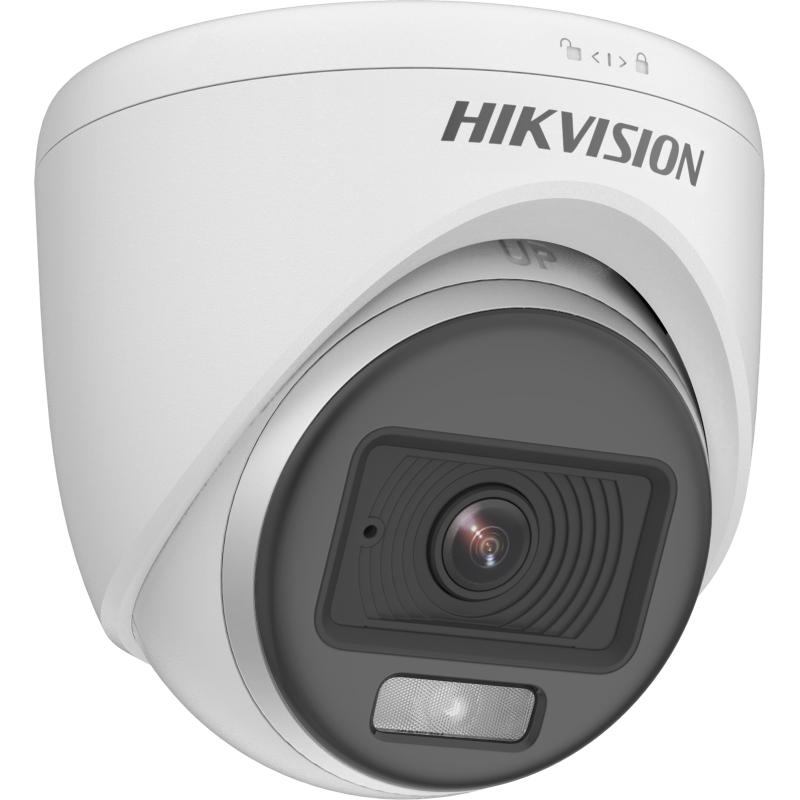

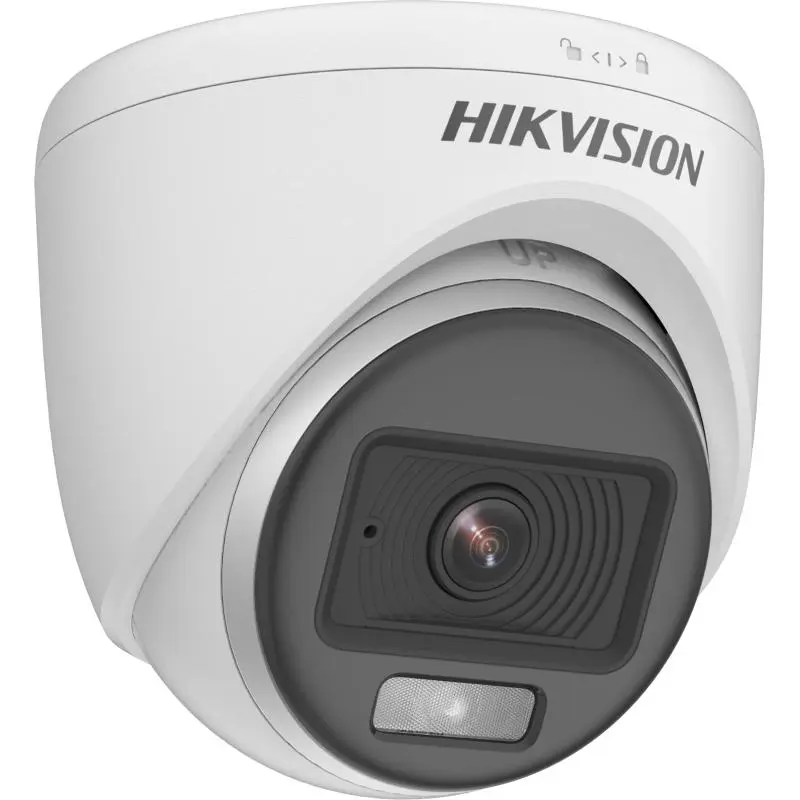

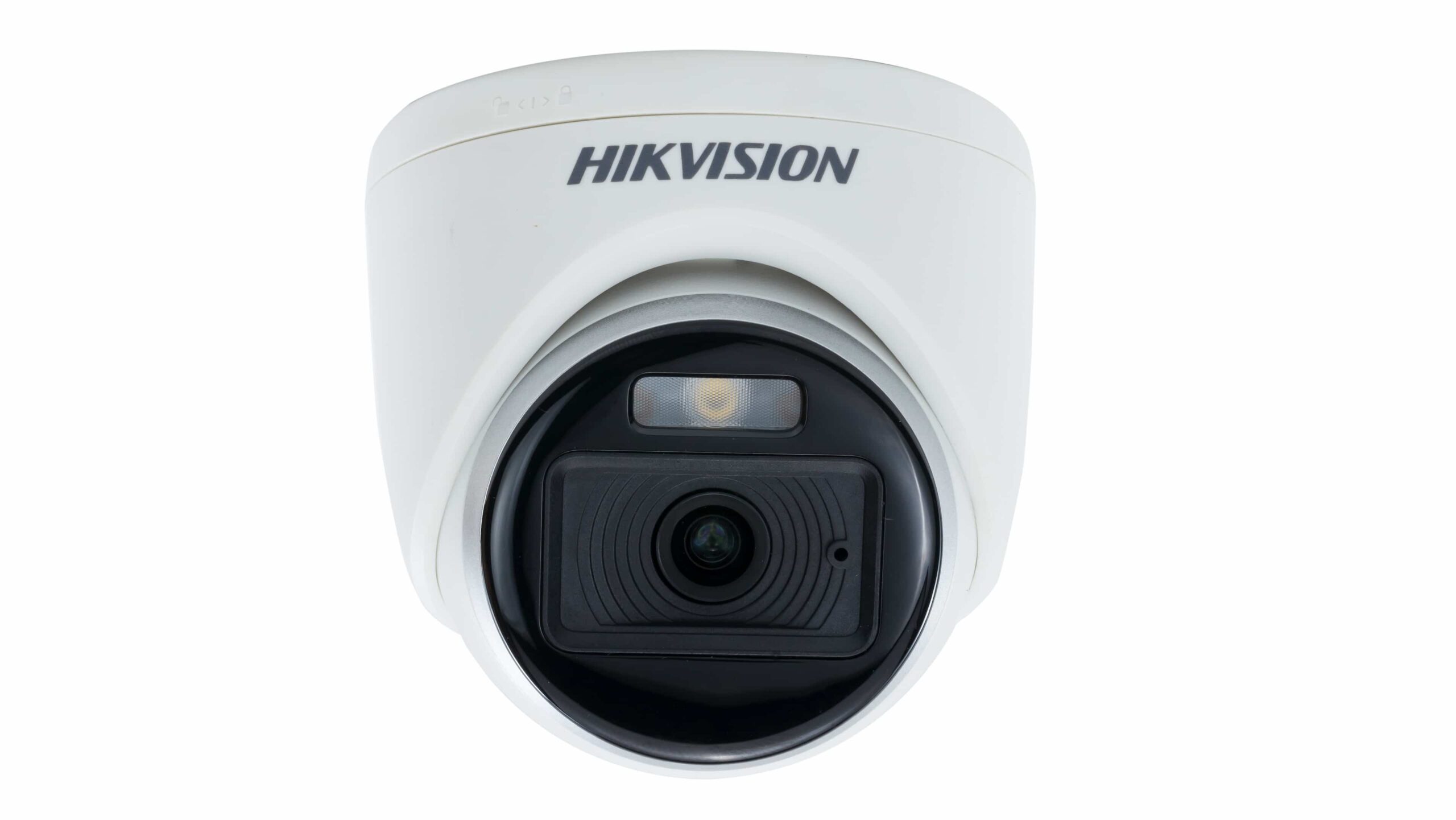

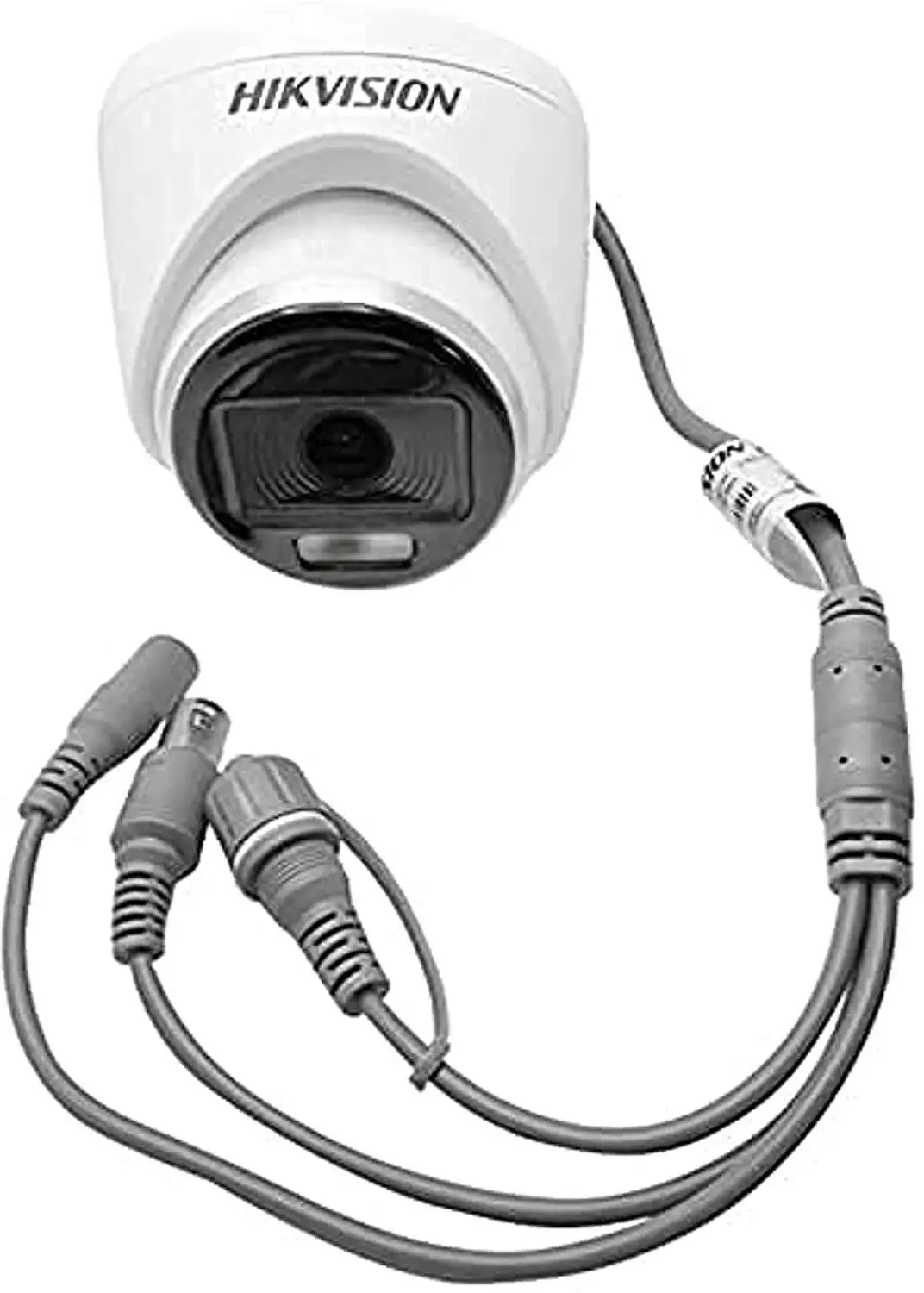

Hikvision ColorVu Turret Camera DS-2CE70DF0T-PFS

Key Features

• High-quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• High-quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)

Camera

• Image Sensor: 2MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
• Signal System: PAL/NTSC

Lens

• Lens Type: 2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125°

  3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99°

• Lens Mount: M12

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 20 m
• Smart Supplement Light: Yes


• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• Image Settings: Brightness, Sharpness, Anti-banding, AGC
• Frame Rate

  TVI: 1080p @25 fps/30 fps

  CVI: 1080p @25 fps/30 fps

  AHD: 1080p @25 fps/30 fps

  CVBS: PAL/NTSC

• Day/Night Mode: Color
• Wide Dynamic Range (WDR) : Digital WDR
• Image Enhancement: DWDR, BLC, HLC, Global
• Noise Reduction: 3D DNR/2D DNR
• White Balance : Auto, Manual

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS
• Alarm: Solid Light Alarm (White Light)

General

• Material: Plastic
• Power: 12 VDC ± 25%, max. 2 W,

*You are recommended to use one power adapter to supply the power for one camera.

• Dimension: Ø85.02 mm × 81.25 mm (3.35″ × 3.2″)
• Weight: Approx. 150 g (0.33 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
• Communication: HIKVISION-C
• Language: English
