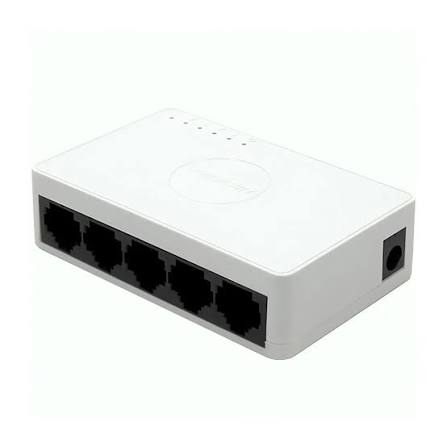

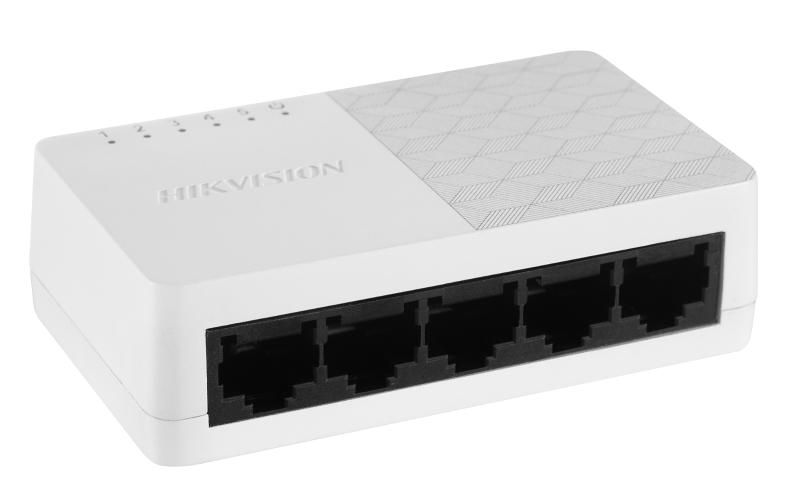

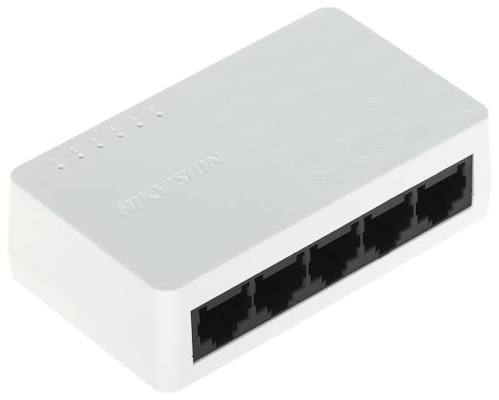

Hikvision 5 Ports Switch DS-3E0505D-O
Hikvision 5 Ports Switch DS-3E0505D-O - Image 2
Hikvision 5 Ports Switch DS-3E0505D-O - Image 3
Hikvision 5 Ports Switch DS-3E0505D-O - Image 4
Hikvision 5 Ports Switch DS-3E0505D-O - Image 5

Hikvision 5 Ports Switch DS-3E0505D-O

5-Port Gigabit Plastic Switch

SKU: 25376 Category: Tags: , , , , Brand:

Key Features

  • 5 x 10/100/1000 Mbps ethernet port
  • Supports MDI/MDIX
  • Store-and-forward switching
  • Supports MAC address auto-learning and aging
  • Simple, compact body design
  • Supports desktop and wall-mounting
  • Plug & play, easy to use.

Key Specifications

  • Product Type: 5-Port Gigabit Ethernet Unmanaged Switch

  • Brand: Hikvision

  • Model Number: DS-3E0505D-O

  • Switching Capacity: Massive 10 Gbps Total Backplane

  • Packet Forwarding Rate: High-Speed 7.44 Mpps

  • MAC Address Table Size: 2 K Entries

  • Internal Data Cache: 1 Mbits

Electrical & Physical Profile

  • Network Ports: 5 × 10/100/1000 Mbps RJ45 Ports

  • Enclosure Material: Sturdy ABS Plastic Body

  • Net Unit Weight: Ultra-lightweight 0.059 kg (0.13 lb)

  • Physical Dimensions: 87.00 mm × 25.00 mm × 51.00 mm

  • Power Input Requirements: 5V DC, 0.6A Low-Voltage Line

  • Maximum Power Consumption: Highly Efficient 3 Watts

  • Operating Temperature Zone: 0 °C to 40 °C (32 °F to 104 °F)

The HIKVISION DS-3E0505D-O is a compact, 5-port unmanaged switch designed for small-scale surveillance or networking needs. It offers stable, high-speed data transmission and is built to operate reliably in harsh environments.
