ELECTRONIC / Alarm SystemWireless External Sounder DS-PS1-E-WB

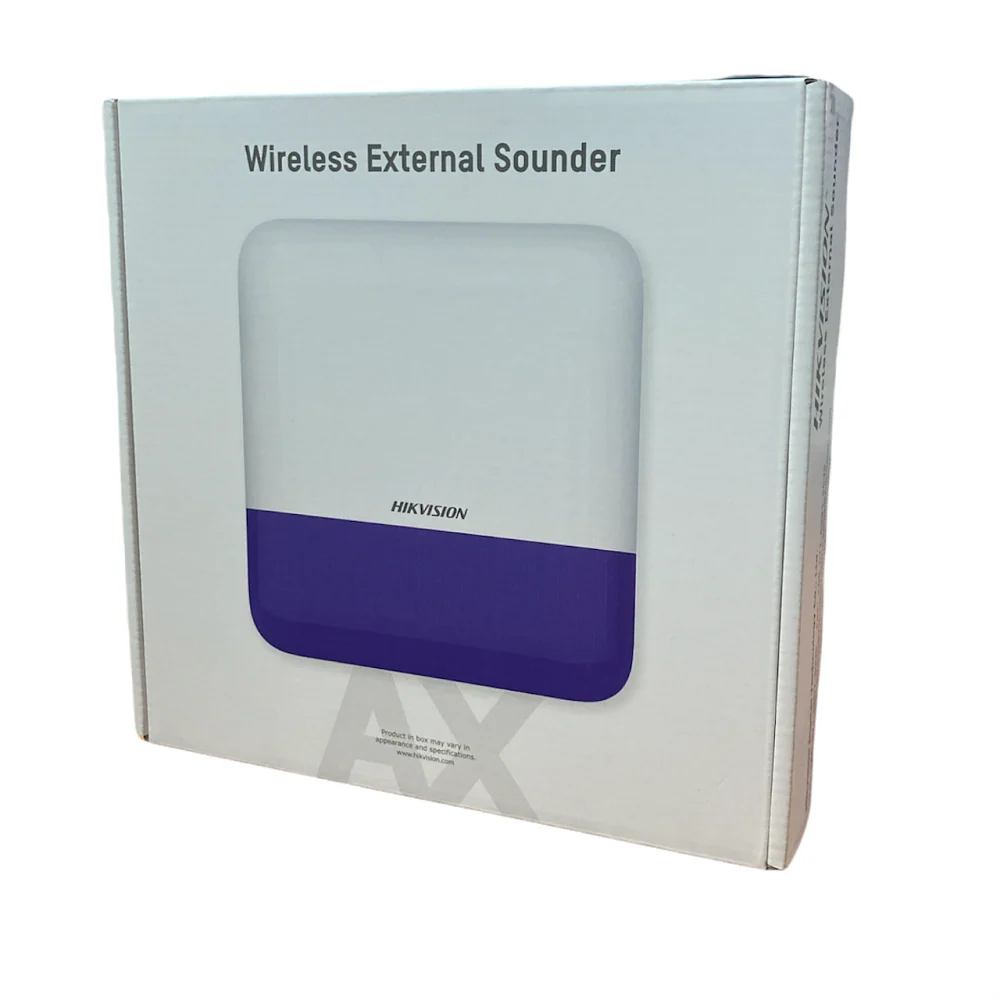

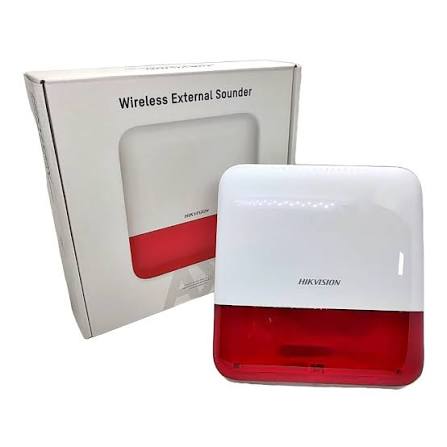

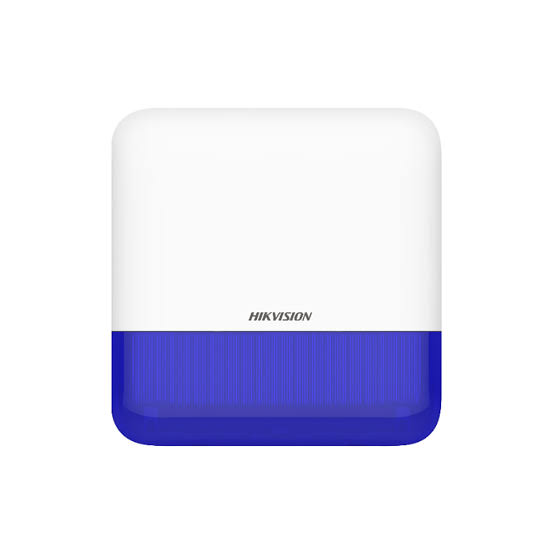

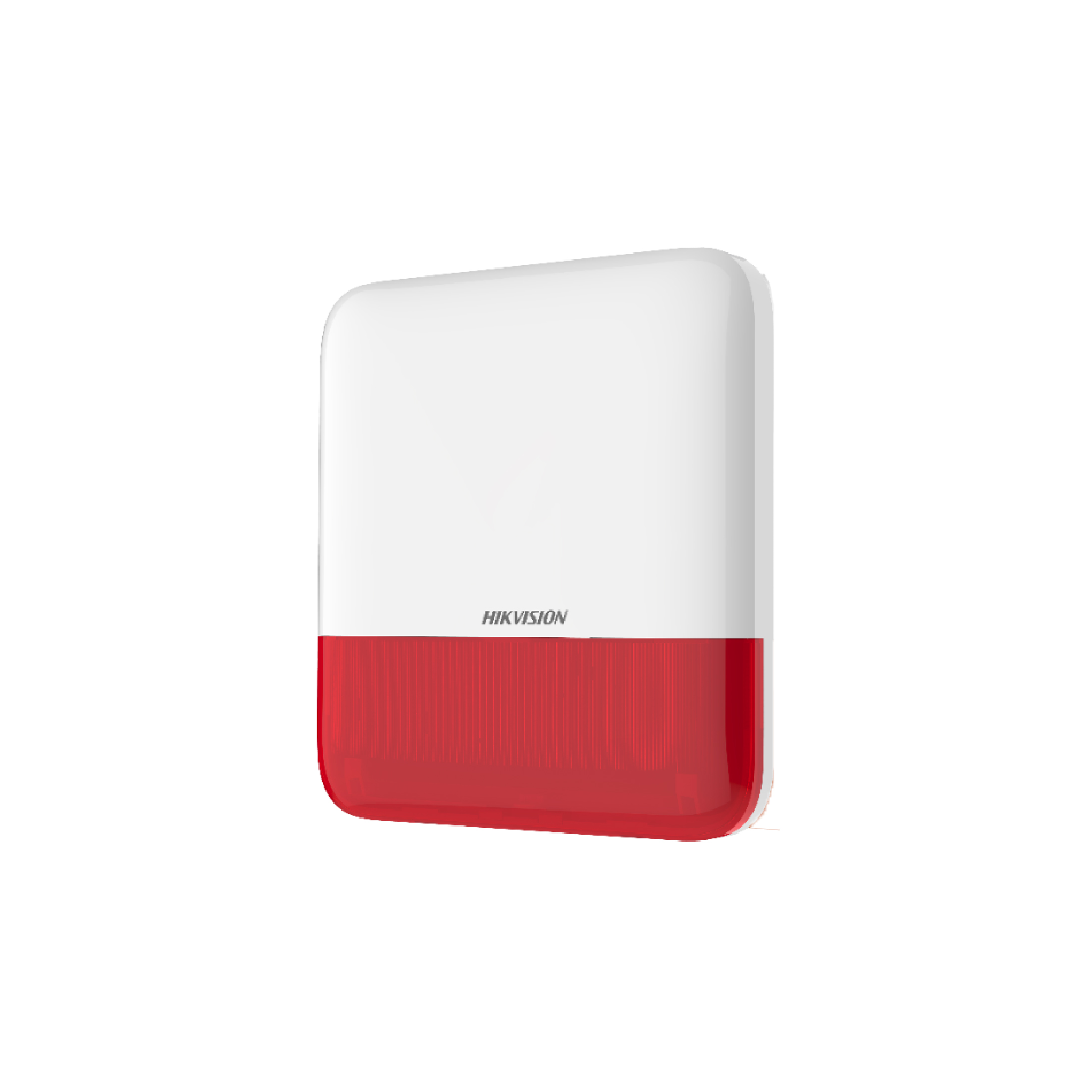

AX PRO Wireless External Sounder
Key Features
- 433 MHz two-way wireless communication
- 3 years battery life span (triggered every two weeks and alerting 90 s for each triggering)
- AES-128 encryption
- Front and rear panel tamper-proof
- 3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
- Buzzer Decibel: 110 dB
- Fully remote configurable through App
- Multiple enrollment methods and easy installation design
- Frequency hopping against jamming for reliable transmission
- IP65 protective level
Specifications
Electrical characteristics
|
| Battery type |
Battery (default power supply method) or 12 VDC |
| Power supply |
Battery (default power supply method) or 12 VDC |
| Operation humidity |
10% to 90% (no condensing) |
| Operation temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Battery lifespan |
Up to 3 years (standby time) |
Wireless transmission
|
| RF frequency |
433 MHz |
| RF modulation |
2GFSK |
| RF distance |
900 m (open area) |
General
|
| IP rate |
IP65 |
| Installation method |
Wall mounting |
| Dimension (WxHxD) |
190 x 200 x 47.3 mm (7.48″ x 7.87″ x 1.86″) |
| Shell material |
PC+ABS |
| Weight |
606.5 g (21.4 oz) |
