Panoramic Network Speed Dome DS-2SE4C425MWG-E/26

Key Features

• Captures a large area and great details at the same time
• High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25× optical zoom and 16× digital zoom
• Expansive night view with up to 100 m IR distance & 30 m white light
• Supports 12V DC & PoE+
• Focuses on human and vehicle targets classification based on deep learning

Characteristics and application

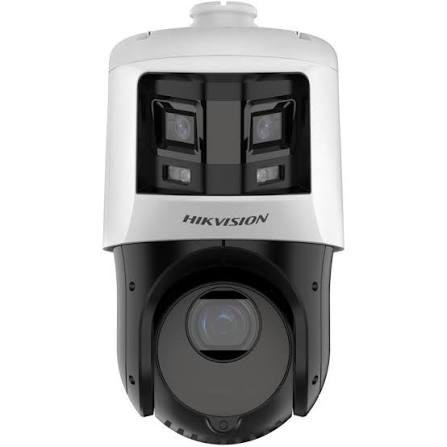

The DS-2SE4C425MWG-E/26(F0) camera is designed for monitoring vast areas such as rivers, roads, railroads, airports, pLace and parks. The use of two sensors – panoramic (bullet) and PTZ – allows it to simultaneously capture a wide frame and details of distant objects. Thanks to powered-by-DarkFighter and ColorVu technologies, the camera provides high-quality images in very low light, while integrated IR and white-light illuminators ensure effective nighttime surveillance.

Advanced PTZ features such as 360° pan, -15° to 90° tilt with auto flip, up to 300 presets, patrol routes and pattern scanning enable precise object tracking and flexible surveillance setup. Intelligent functions, including people and vehicle classification based on deep learning, face detection, people-in-zone counting, and enhanced VCA events, facilitate system automation and false alarm reduction.

Video, audio and network functions

The camera offers a main, auxiliary and third stream (for the PTZ channel) with support for H.265, H.264 and MJPEG compression and H.264+ and H.265+ features to save bandwidth and storage space. The bullet channel’s main stream reaches up to 25 fps at 50 Hz or 30 fps at 60 Hz at resolutions up to 3632 × 1632, while the PTZ channel reaches up to 2560 × 1440 at the same frame rate. The configuration also includes 8 fixed ROI areas for each stream, digital WDR (bullet channel) and 120 dB WDR for the PTZ channel, EIS, BLC, HLC, 3D DNR, digital defog and privacy masks.

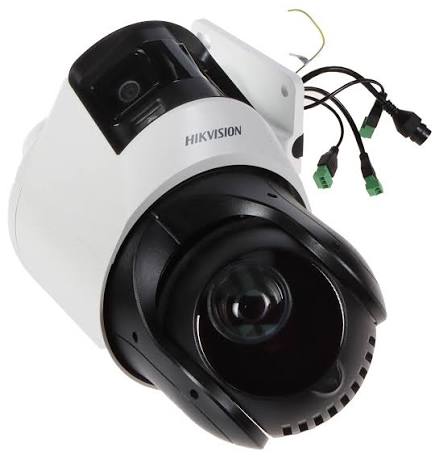

In terms of audio, the device supports multiple codecs (G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3) with a wide range of bit rates and sampling rates, as well as environmental noise filtering. The camera is equipped with an RJ45 10/100M port, microSD/microSDHC/microSDXC card slot up to 256GB, audio input/output, one alarm input and one alarm output. Multiple network protocols are supported (including IPv4/IPv6, HTTP, HTTPS, RTSP, RTP, TCP/IP, UDP, NTP, SNMP, 802.1X), NAS access (NFS, SMB/CIFS), ANR, and iVMS-4200 and Hik-Connect client software.

Design, power and ruggedness

The camera’s housing is made of ADC12 material and meets the requirements of IP66, providing weather resistance and 6000V lightning and surge protection. The device operates in a wide temperature range of -30°C to 65°C with humidity below 90% RH, allowing outdoor installation in harsh environmental conditions. The dimensions of the camera are Ø 166 mm × 302.6 mm, and the weight is about 2.4 kg.

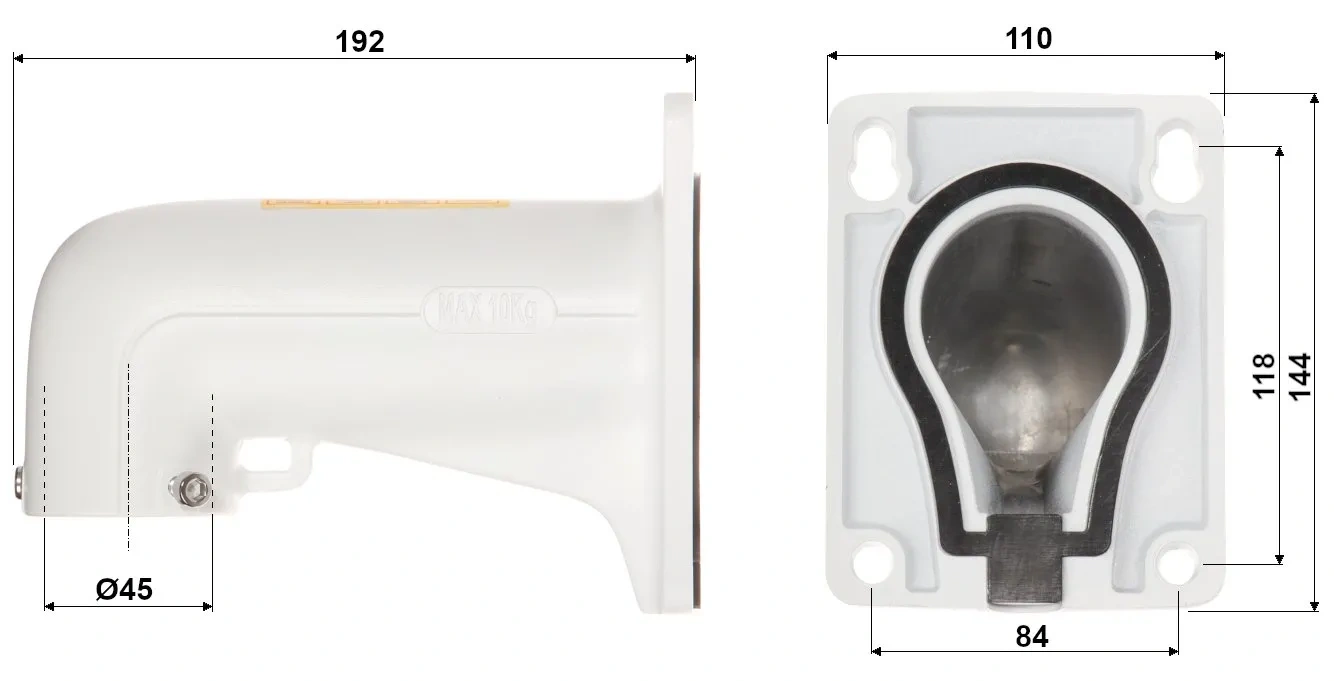

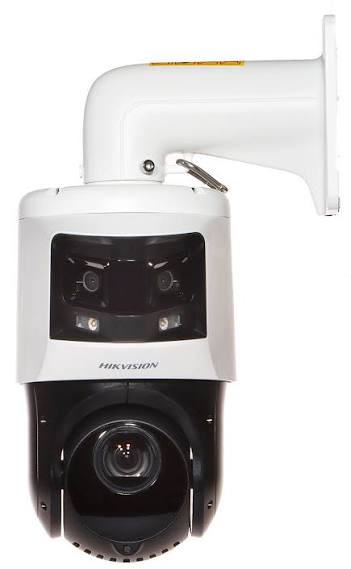

The camera is powered by 12 V DC or via PoE+, with a maximum power consumption of 24 W (including up to 2.6 W for the heater and up to 11 W for auxiliary lighting). A DS-1618ZJ wall mount is included, and a wide range of optional mounting accessories (wall, ceiling, pole and corner mounts from the DS-16xxZJ and DS-46xxZJ series) allows you to tailor the installation method to your specific location.
