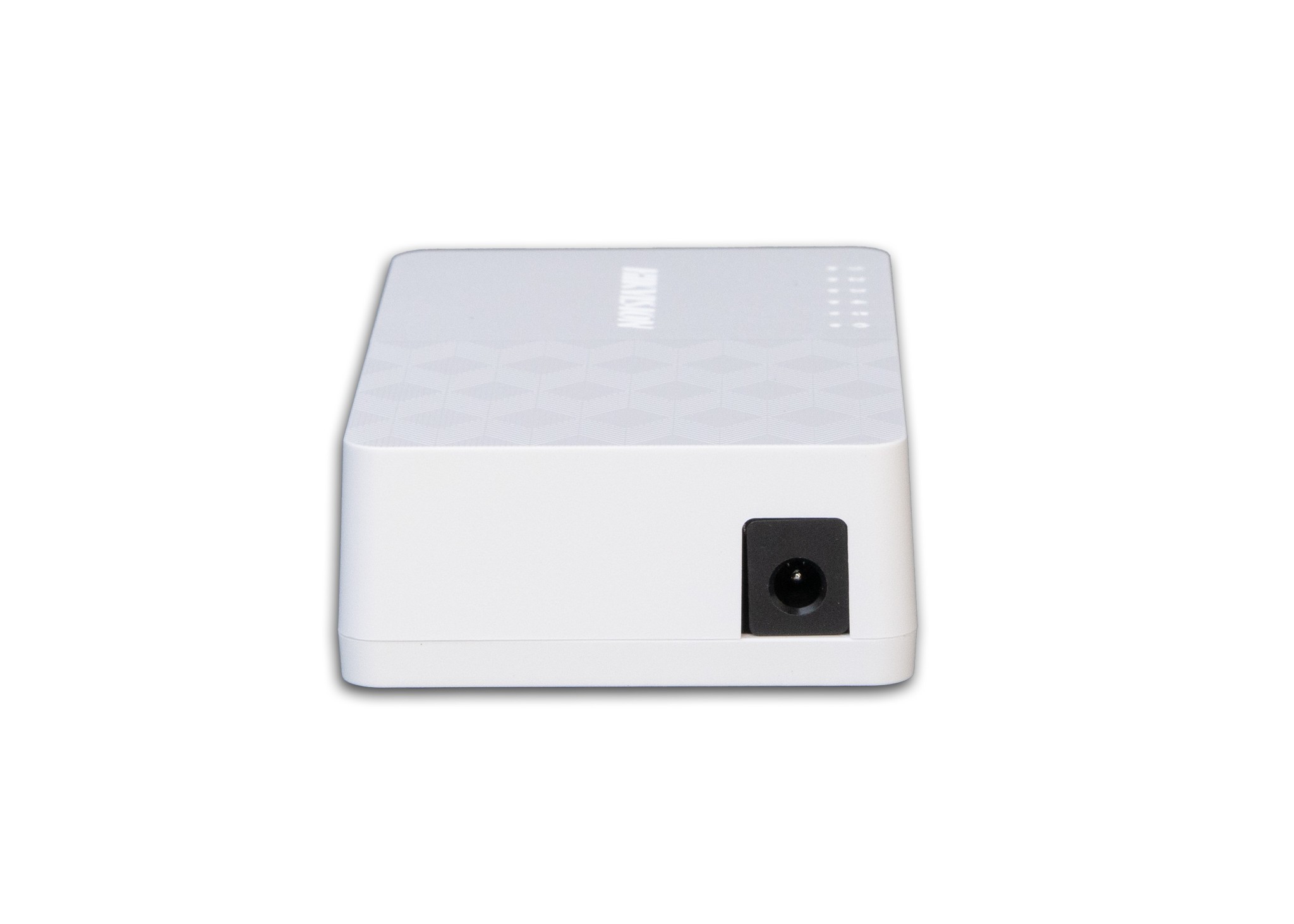

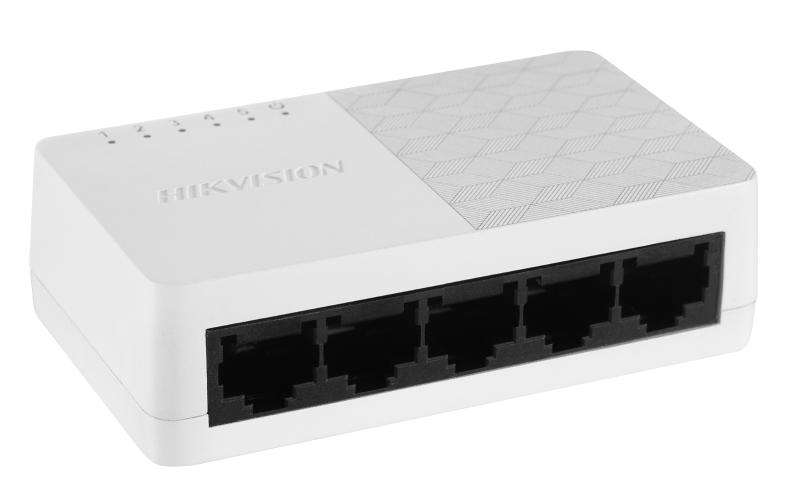

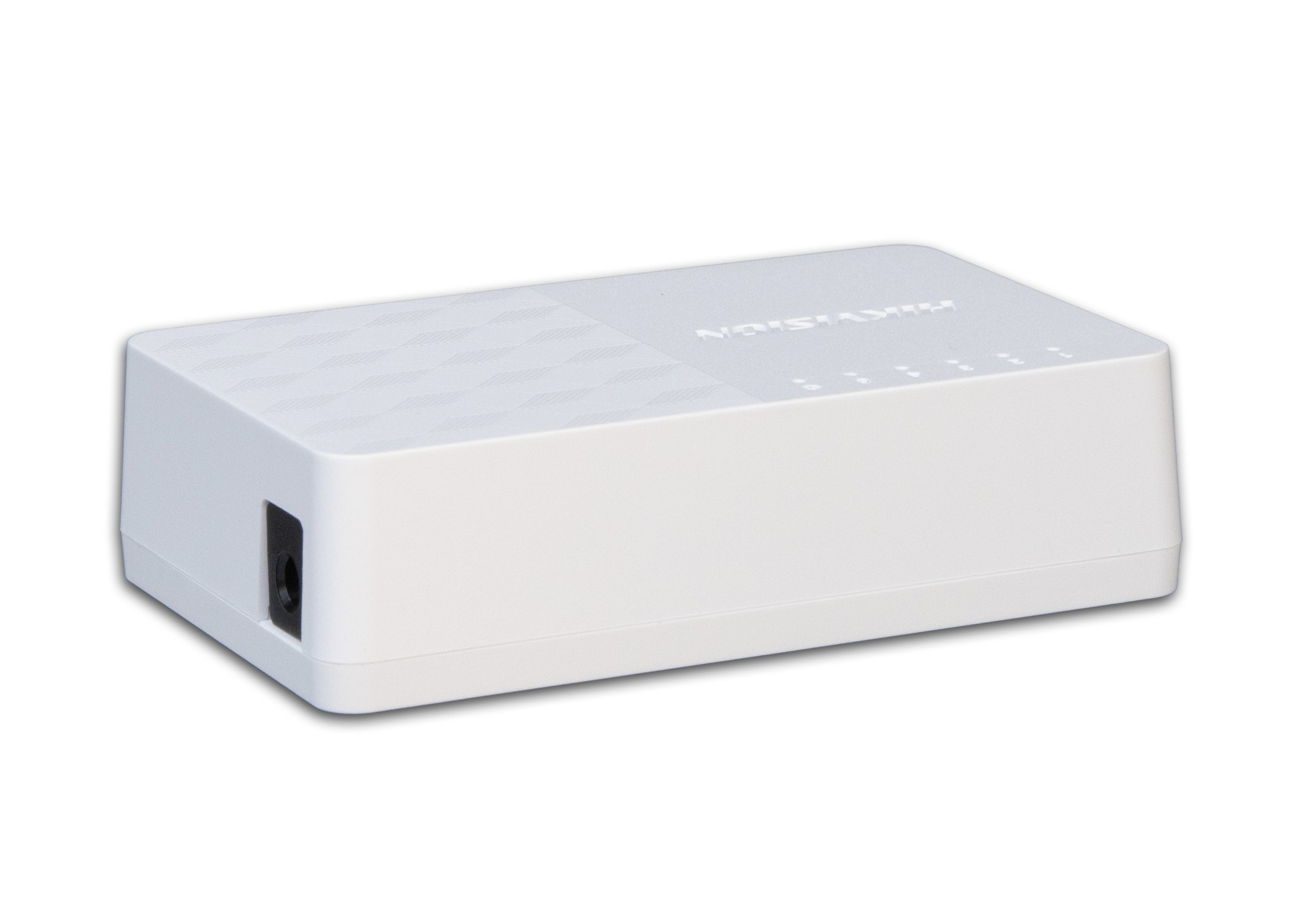

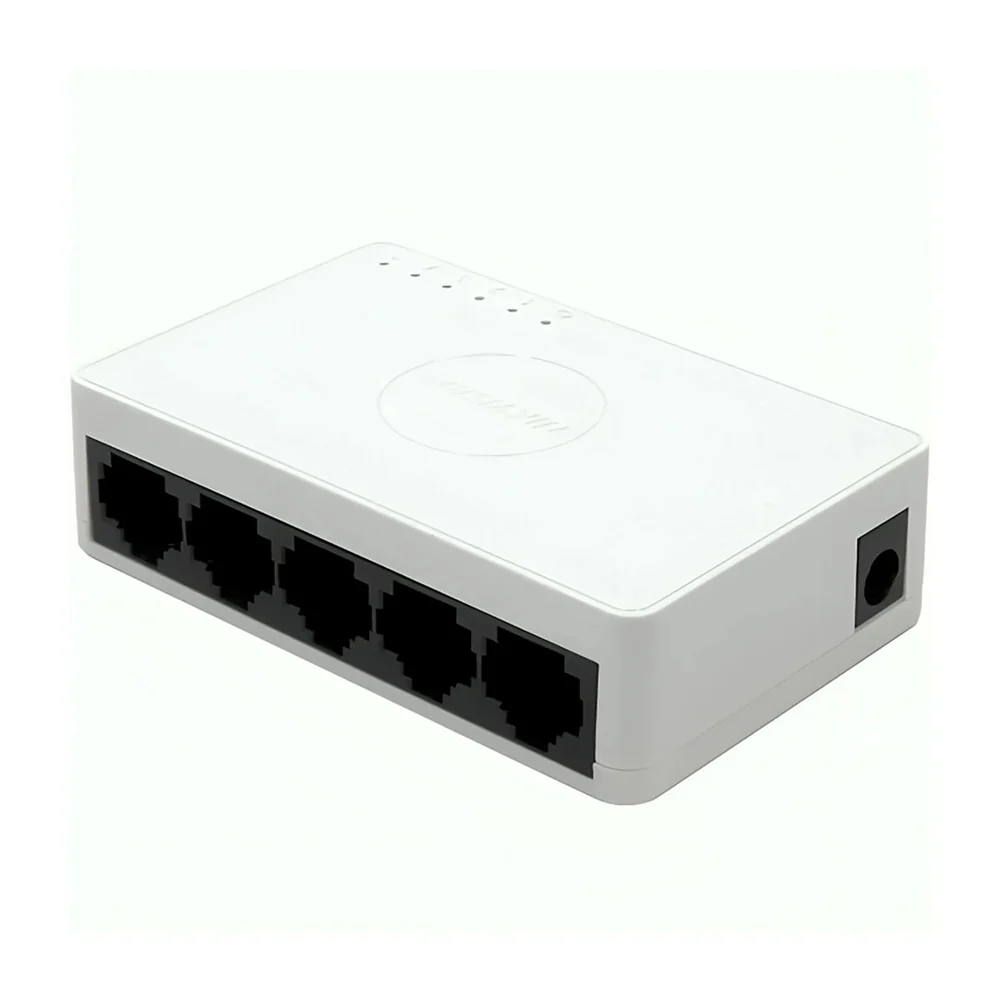

Hikvision Ethernet Switch DS-3E0105D-O

The Hikvision DS-3E0105D-O Fast Ethernet Switch offers a reliable, low-cost networking solution for small businesses and residential properties. Unmanaged switches provide the simplest way to expand your local network. Consequently, this unit allows you to connect multiple devices like desktop computers, network printers, or smart TVs effortlessly. As a result, it serves as an excellent choice for immediate network expansion.

This lightweight networking device features five 10/100 Mbps RJ45 ports that support auto-negotiation. Additionally, the unit incorporates an auto-MDI/MDIX crossover detection feature. This means you do not need to worry about using specific crossover network cables during installation. Therefore, the setup process becomes completely hassle-free, even for users with zero technical background.

Key Features

• 5 x 10/100 Mbps ethernet port
• Supports MDI/MIDX
• Store-and-forward switching
• Supports MAC address auto-learning and aging
• Simple, compact body design
• Supports desktop and wall-mounting installation
• Plug & play, easy to use

Specifications

• Product Type: 5-Port Fast Ethernet Unmanaged Switch

• Brand: Hikvision

• Model Number: DS-3E0105D-O

• Switching Capacity: 1 Gbps Total Data Backplane

• Packet Forwarding Rate: 0.74 Mpps

• MAC Address Table Size: 2 K Entries

• Internal Data Cache: 768 Kbits

Electrical & Physical Profile

• Network Ports: 5 × 10/100 Mbps RJ45 Ports

• Enclosure Material: High-Strength ABS Plastic

• Net Unit Weight: 0.093 kg (0.205 lb)

• Physical Dimensions: 83.00 mm × 22.00 mm × 52.00 mm

• Power Input Requirements: 5V DC, 0.6A Low-Voltage Input

• Maximum Power Consumption: Ultra-Efficient 3 Watts

• Operating Temperature Zone: 0 °C to 40 °C (32 °F to 104 °F)
