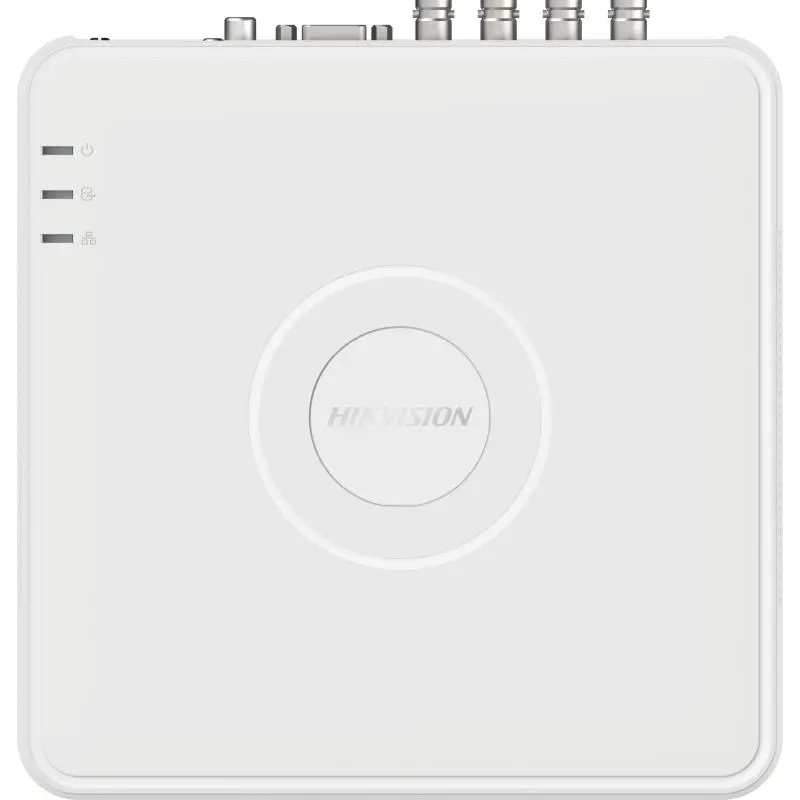

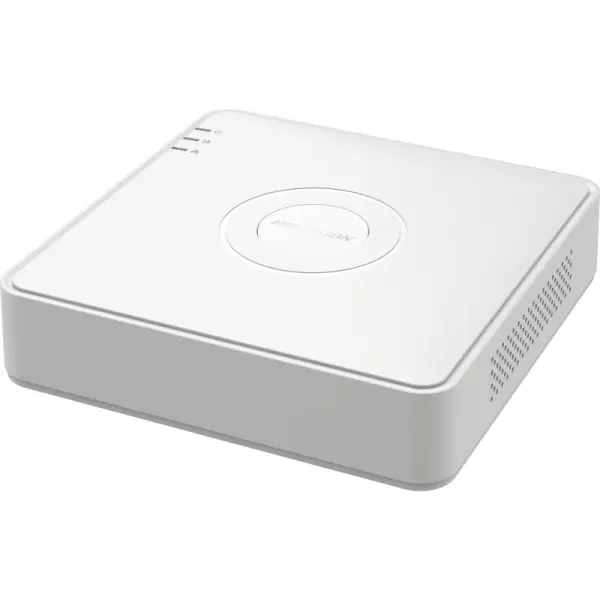

Hikvision DVR – 8 Channel DS-7108HGHI-M1/T

Key Features:

• Support all channels motion detection technology
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/CVI/AHD/IP/CVBS video inputs
• Audio over coaxial cable
• Support all channels HDTVI two-way audio technology
• Up to 10-ch IP camera inputs

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Video and Audio

• IP Video Input

  2-ch (up to 10-ch)

  Up to 5MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

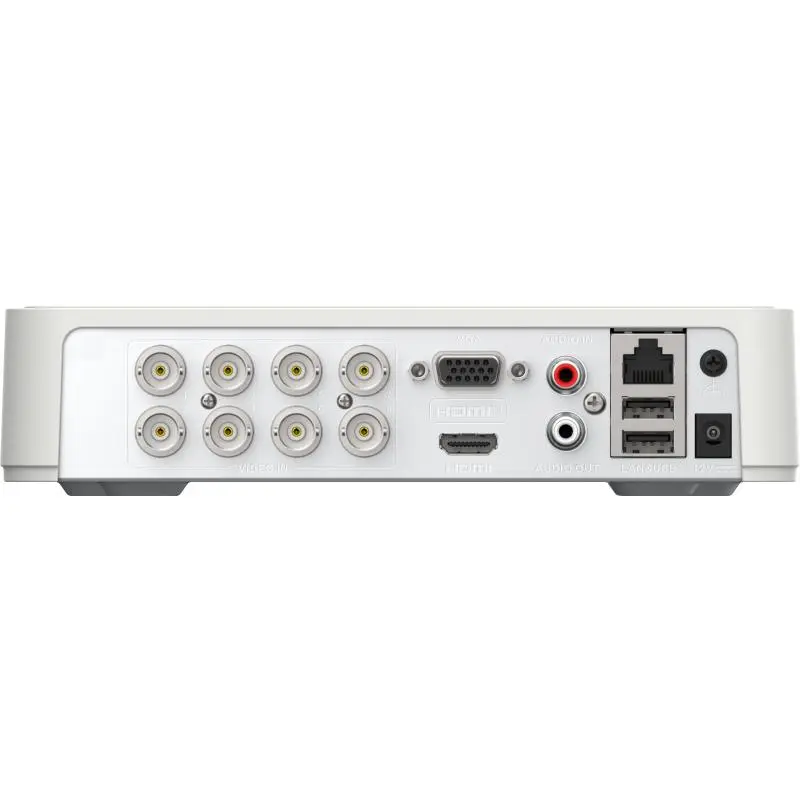

• Analog Video Input

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input : 1080p25, 1080p30, 720p25, 720p30
• AHD Input : 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
• CVBS Input : Support
• HDMI Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA simultaneous output
• Audio Input

  1-ch RCA (2.0 Vp-p, 1 KΩ)

  8-ch via coaxial cable

• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio : Reuse the first audio input
• Synchronous playback : 8-ch

Recording

• Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF

  For SD stream access: WD1/4CIF/VGA/CIF

• Frame Rate

  Main stream:

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

  For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  For 1080p and 720p stream access CIF/QVGA@15 fps

  For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate : 32 Kbps to 4 Mbps
• Stream Type : Video, Video & Audio
• Audio Compression : G.711u
• Audio Bitrate : 64 Kbps

Network

• Total Bandwidth : 72 Mbps
• Remote Connection : 64
• Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™, HTTPS
• Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA : 1 SATA interface
• Capacity : Up to 4 TB capacity for each disk
• USB Interface : Rear panel: 2 × USB 2.0
• Alarm In/Out : N/A

General

• Power Supply : 12 VDC, 1.5 A
• Consumption : ≤ 10 W (without HDD)
• Working Temperature : -10 °C to 55 °C (14 °F to +131 °F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
• ≤ 1 kg (without HDD, 2.2 lb.
