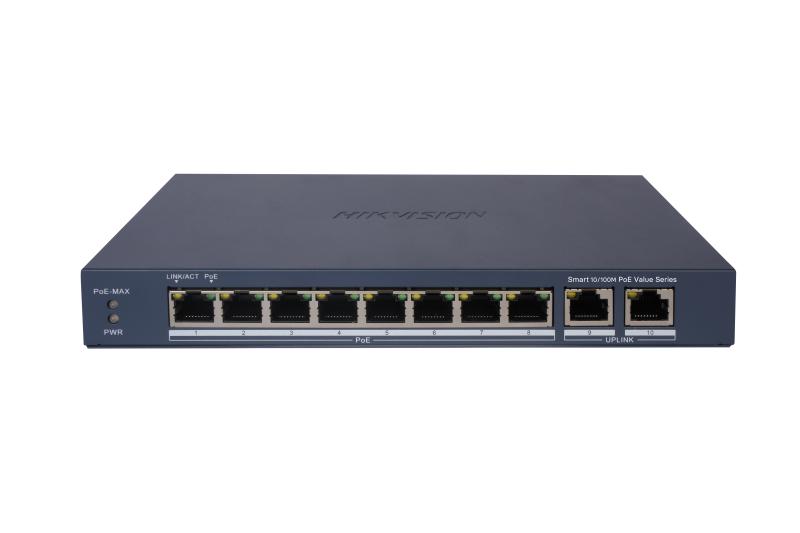

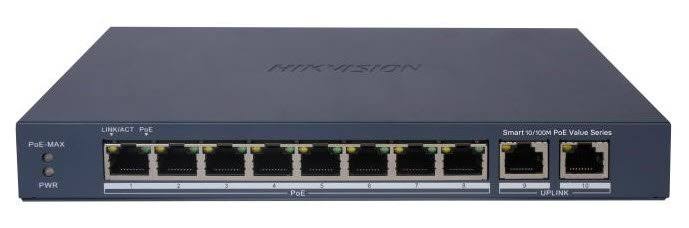

ELECTRONIC / Network SwitchesHikvision 8 Port POE Switch DS-3E1310P-EI/M
Fast Ethernet Smart POE Switch
Key Features
- 8 × 10/100 Mbps PoE ports,2 × Gigabit RJ45 port
- Total PoE Power Budget 60 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
Specification
| Brand |
Hikvision |
| Interfaces |
8 × 10/100 Mbps PoE, 2 × Gigabit RJ45 |
| PoE Standard |
IEEE 802.3af, IEEE 802.3at |
| Assigned PoE ports |
Ports 1 to 8 |
| PoE power per port |
Up to 30 W |
| Total PoE budget |
60 W |
| Transmission range |
Up to 300 m (Ports 1 at 8) |
| Special PoE Features |
Smart PoE Watchdog |
| Port optimization |
Priority VIP ports, Port isolation |
| Switching capacity |
9.6 Gbps (Device) / 5.6 Gbps (Port) |
| Packet forwarding rate |
7.14 Mpps (Device) / 4.17 Mpps (Port) |
| Internal data cache |
2 Mbits |
| MAC address table |
4 K |
| VLAN Configuration |
802.1Q, ID 1-4094, Max. 4094 VLAN, Trunk, Access |
| Multicast |
IGMP Snooping v1/v2/v3, multicast table entries |
| Preventing Loops |
802.1D STP, 802.1w RSTP |
| Traffic control |
Port-based speed limit, Storm control |
| Management platforms |
Hik-Central Pro, Hik-Partner Pro, Web |
| Network maintenance |
DHCP Client, LLDP, Port mirroring, Super IP (10.180.190.200) |
| Network Diagnostics |
Wiring fault detection |
| Housing material |
Metallic |
| Installation type |
Tabletop, Wall-mounted |
| Power supply |
DC 54 V, 1.2 A |
| Energy consumption |
Max. 65 W / Idle 5 W |
| Surge protection |
6 kV on all ports |
| Operating temperature |
0 °C to 40 °C |
| Operating Humidity |
5% to 95% (no condensation) |
| Dimensions (W × H × D) |
217.6 mm × 27.6 mm × 108.5 mm |
| Net weight |
0.54 kg (1.19 lb) |
