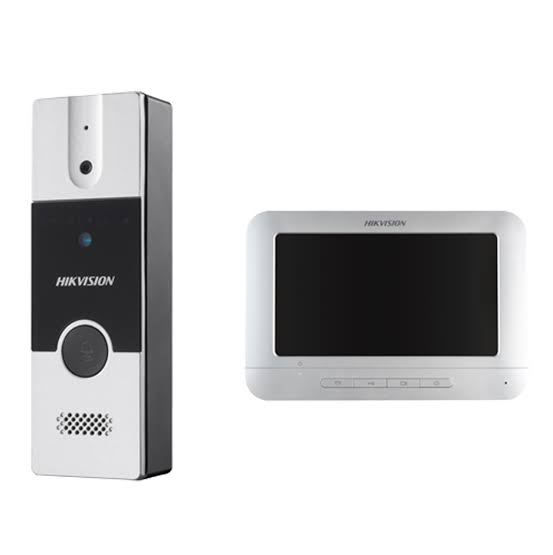

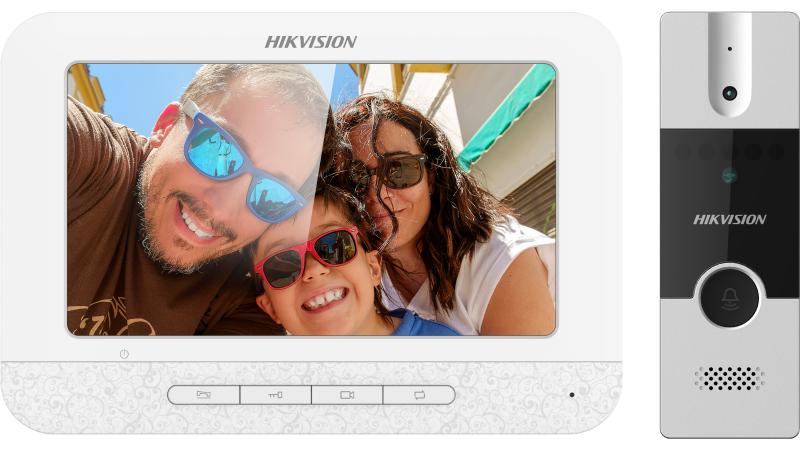

Hikvision 7 inch Video Door Phone DS-KIS202T

Key Features

• 4-wire analog video intercom bundle for villa or house
• One call button for easier calls
• Including DS-KB2411T-IM and DS-KH2220, 5-meter 4-wire cable, and other accessories
• European power supply adaptor included (please mark for other standards when you order)

Specification

Door Station/Video Parameters

• Resolution

  1920 × 1080

  Stream resolution: 960 × 576

• Lens: 1/2.7″ CMOS
• FOV: Horizontal: 66.2°，Vertical: 37.2°

Door Station/Audio Parameters

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker

Door Station/Device Interfaces

• I/O Output: 1 relay output
• Four-Wire: 1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power, supply, 1-ch grounding)

Door Station/General

• Power Supply: 12 VDC
• Power Consumption: Max. 5W
• Working Temperature: -10° C to + 55° C (14° F to 131° F)
• Working Humidity: 10% to 90%
• Dimensions: 128 mm × 42 mm × 24.8 mm

Indoor Station/Display Parameters

• Operation Method: Physical button
• Type: 7-inch colorful TFT LCD
• Resolution: 800 × 480

Indoor Station/Audio Parameters

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation

Indoor Station/General

• Power Supply: 12 VDC
• Power Consumption: ≤5 W
• Working Temperature-10° C to + 55° C (14° F to 131° F)
• Working Humidity: 10% to 90%
• Dimensions (W × H × D): 195.8 mm × 132.8 mm × 18.39 mm (7.7″ × 5.2″ ×0.7″)
