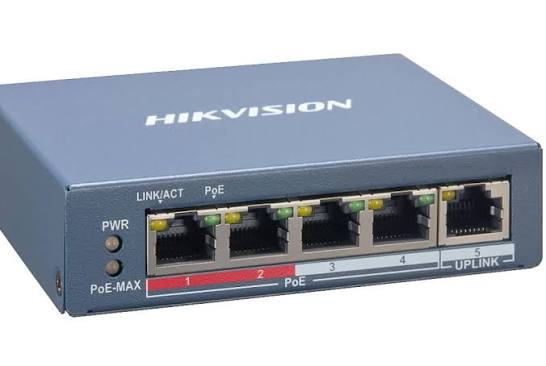

Hikvision 4 Port POE Switch DS-3E1105P-EI/M

Key Features

• 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
• Total PoE Power Budget 45 W
• Support 802.1Q VLAN
• Support PoE watchdog to detect and restart the cameras that do not respond
• Support STP/RSTP loop prevention
• Support cable detection to locate failure
• Up to 300 m Long Range PoE Transmission
• 6 kV Surge Protection

Key Specifications

• Product: 4-Port Fast Ethernet Smart Managed PoE Switch

• Brand: Hikvision

• Model Number: DS-3E1105P-EI/M

• GTIN13 / EAN Barcode: 6941317277873 (Standardized local schema identifier)

• Switching Capacity: 1.2 Gbps Total Backplane Bandwidth

• Packet Forwarding Rate: 0.89 Mpps

• MAC Address Table Size: 2 K Entries

• Internal Data Cache: 768 Kbits

• VIP Priority Ports: Ports 1 and 2 give transmission priority to critical video streams when bandwidth gets low.

PoE Capabilities & Environmental Profile

• PoE Standards Compliance: IEEE 802.3af and IEEE 802.3at Layouts

• PoE Power Delivery Budget: 45 Watts Combined Total Power Output

• Maximum Output Capacity: Up to 30 Watts Maximum per Single PoE Port

• PoE Wire Wiring Mode: End-Span Configuration via Pins 1/2(-) and 3/6(+)

• Hardware Enclosure Type: Heavy-Duty Fanless Metal Shell

• Net Unit Weight: 0.26 kg (0.573 lb)

• Physical System Dimensions: 121.1 mm × 27.6 mm × 83.1 mm

• Operating Input Power: 54V DC, 0.92A Dedicated Power Supply

• Mounting Support Options: Flat Desk-Mounted or Secure Wall-Mounted Configurations

The Hikvision DS-3E1105P-EI/M Smart Managed PoE Switch provides a reliable network infrastructure solution for modern IP surveillance installations. Standard unmanaged switches lack visibility into network health. However, this intelligent switch lets administrators monitor performance, check link status, and track power utilization remotely. Consequently, it serves as an ideal option for boutique hotels, business offices, and residential properties.

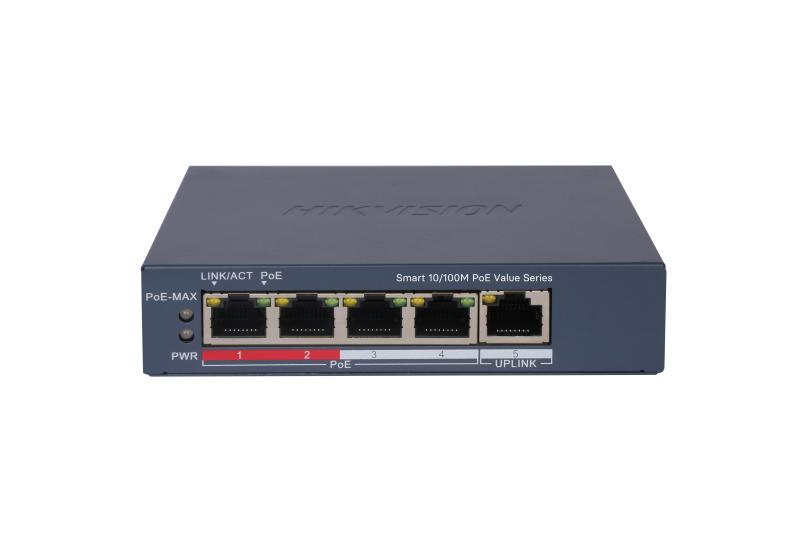

This heavy-duty surveillance switch features a robust layout containing four 10/100 Mbps PoE ports and one dedicated uplink port. Additionally, the hardware delivers a total combined PoE power budget of 45W. This configuration supplies up to 30W per individual port over standard lines. Therefore, you can power multiple high-definition IP security cameras or wireless access points smoothly without deploying external field power supplies
