Key Features
- HikAI-ISP for excellent noise reduction effect
- Super clear 24/7 colorful imaging with ColorVu 3.0 technology
- Motion Detection 3.0, more accurate on person and vehicle classification
- -SL/-SRB: Strobe Light & Audio Alarm to deter intruders
- -SL/-SRB: Two-Way Audio via camera and Hik-Connect
- Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
- -F: Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP67)
Specification
| Brand | HIKVISION |
| Range | VALUE |
| Image sensor | 1/1.8″ Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560×1440) |
| Main Stream rate | 25 fps (2560×1440, 1920×1080, 1280×720) |
| Extra Stream rate | 25 fps (768×432, 640×360) |
| Compression | Main stream: H.265+ / H.264+ / H.265 / H.264 Sub stream: H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 104°, V: 54.4°, D: 126.7° |
| Range performance | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum illumination | Colour: 0.0001 Lux @(F1.0, AGC ON) |
| ColorVu 3.0 | Color image 24/7 with HIKAI-ISP, F1.0 and sensor 1/1.8″ AI noise reduction offers the advantage of higher static brightness Dynamic motion blur reduction, providing sharp image quality even in low light conditions |
| Hybrid light | IR and white light up to 30m |
| Day/Night | Auto / Manual / Programmable |
| Audio | Integrated microphone Noise reduction filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror, Hallway mode, Privacy mask |
| Motion Detection | Motion detection 3.0 with human and vehicle classification applied in motion detection. |
| AcuSearch | Yes (Requires recorder to perform searches) |
| Internal memory | Does not have |

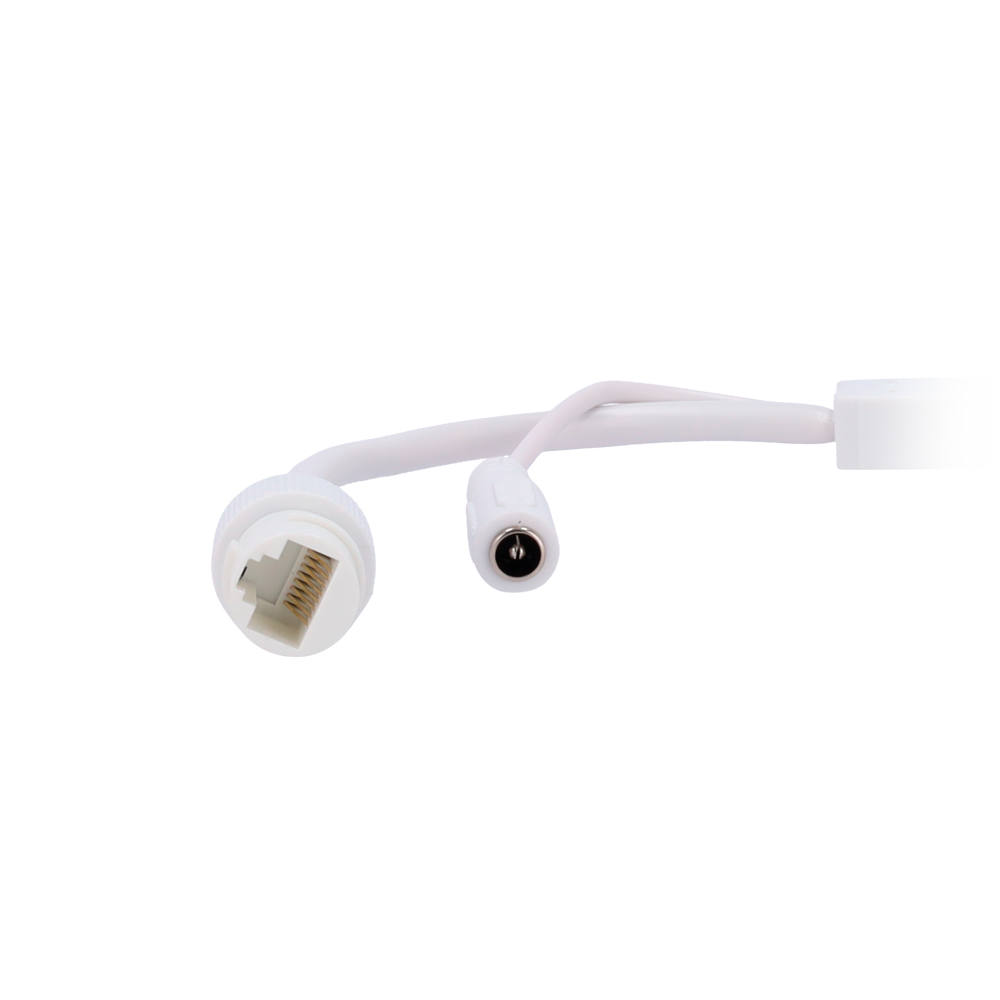

| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Power | DC 12 V / 0.5A / 6W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 103.1 mm (H) x 130.1mm (Ø) |

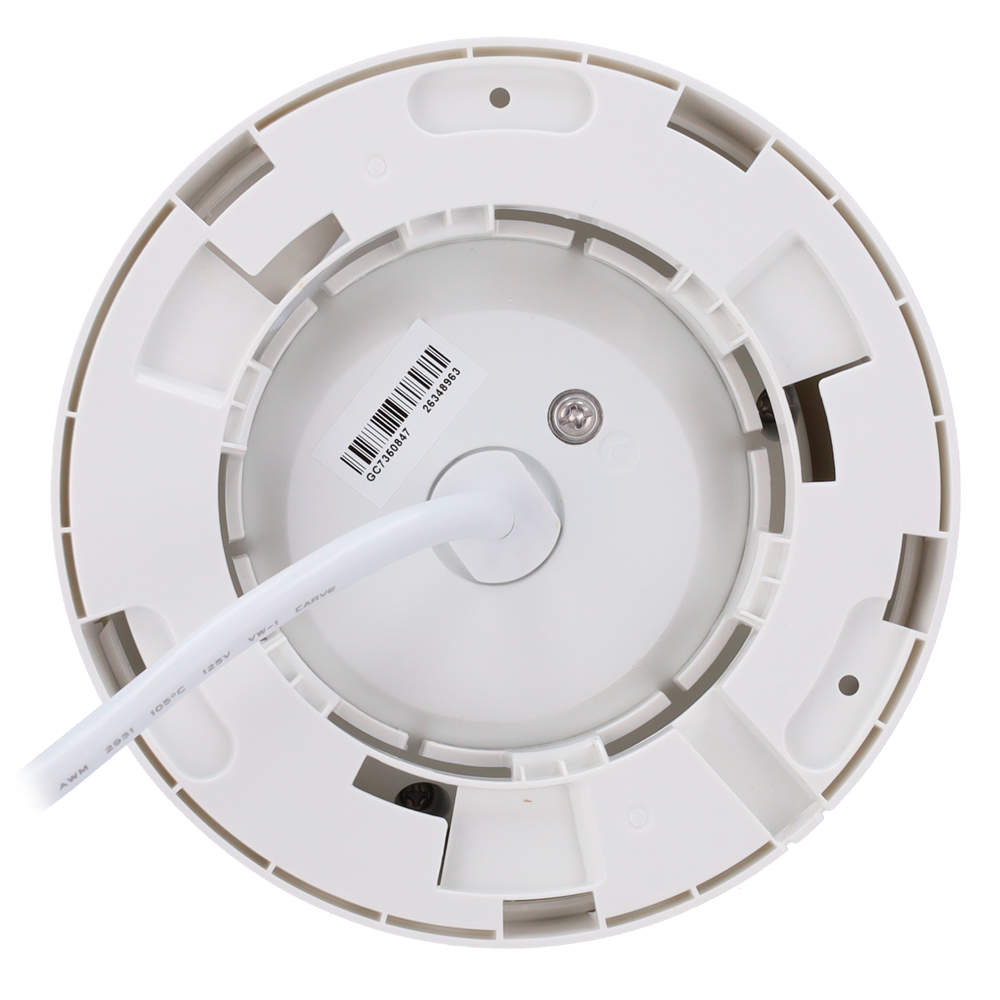

| Base dimensions | Ø base 130.1 mm / (Ø 112 screws / 3 screws) (46 mm x 83.5 mm / 4 screws) |
| Material | Metal and plastic |
| Weight | 755 g |
