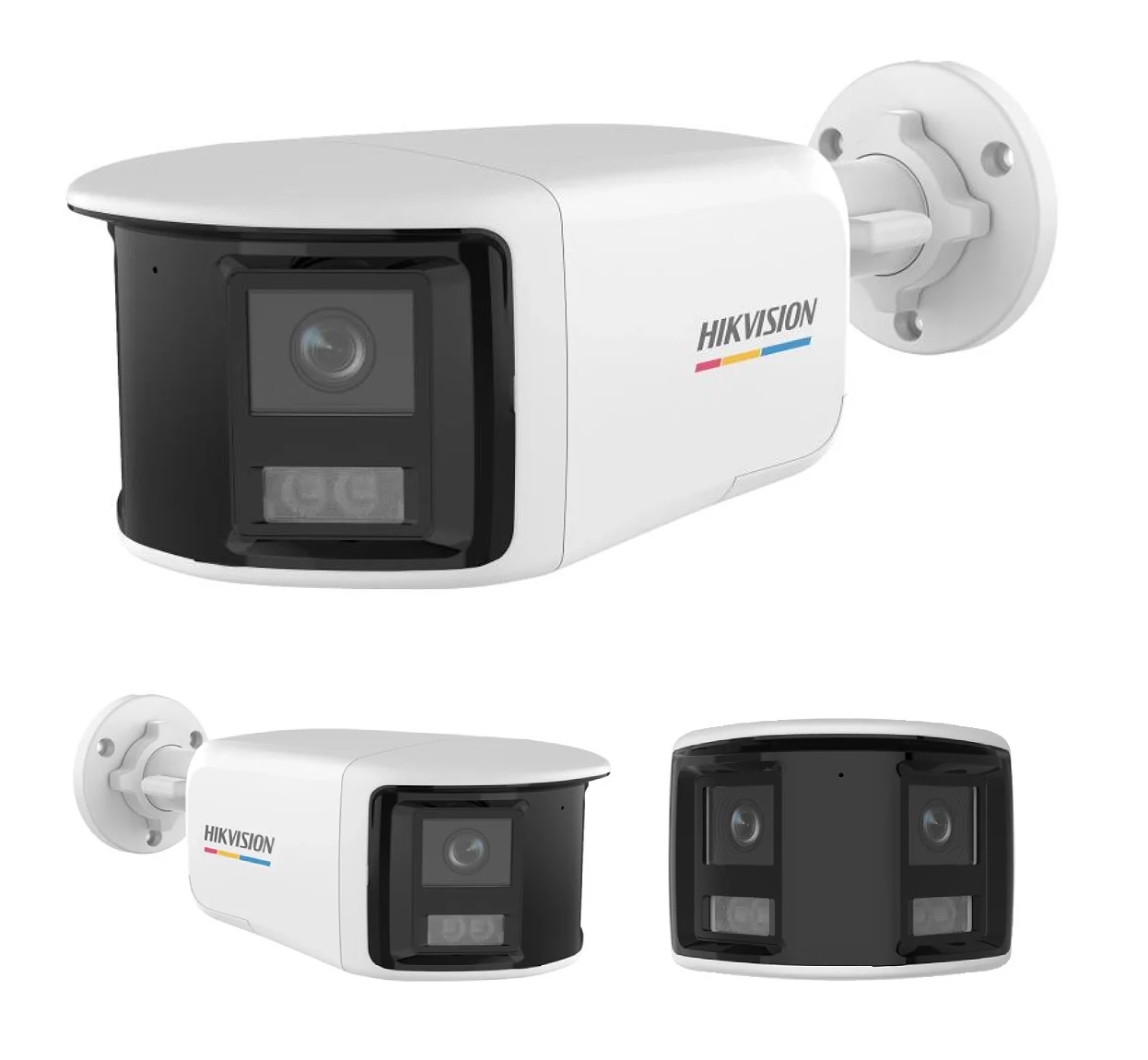

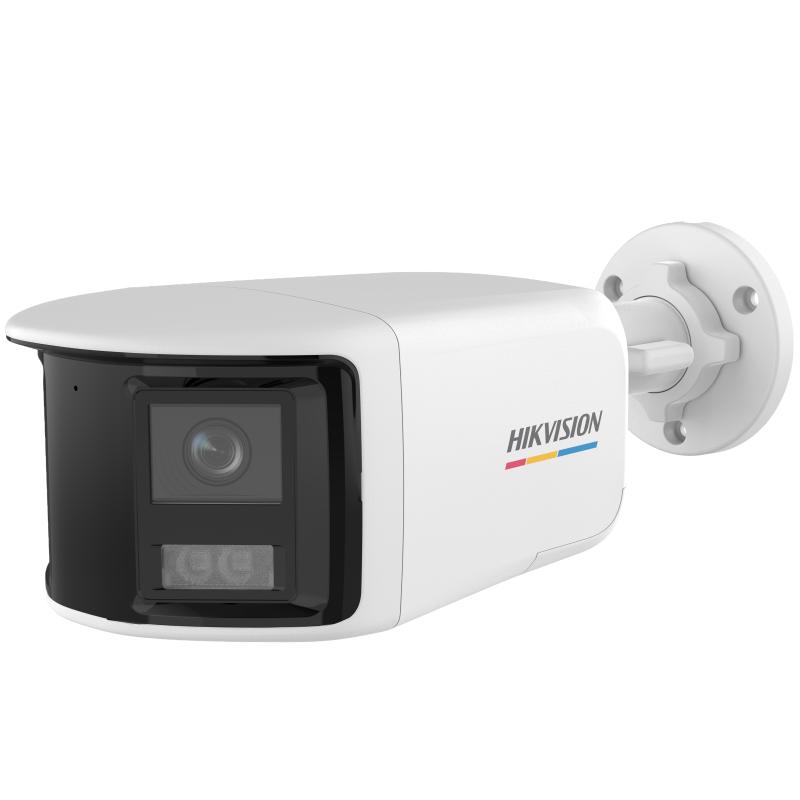

Hikvision 3K ColorVu Dual Lens Fixed Bullet Camera – DS-2CE12KF3TP-DLS

Key Features

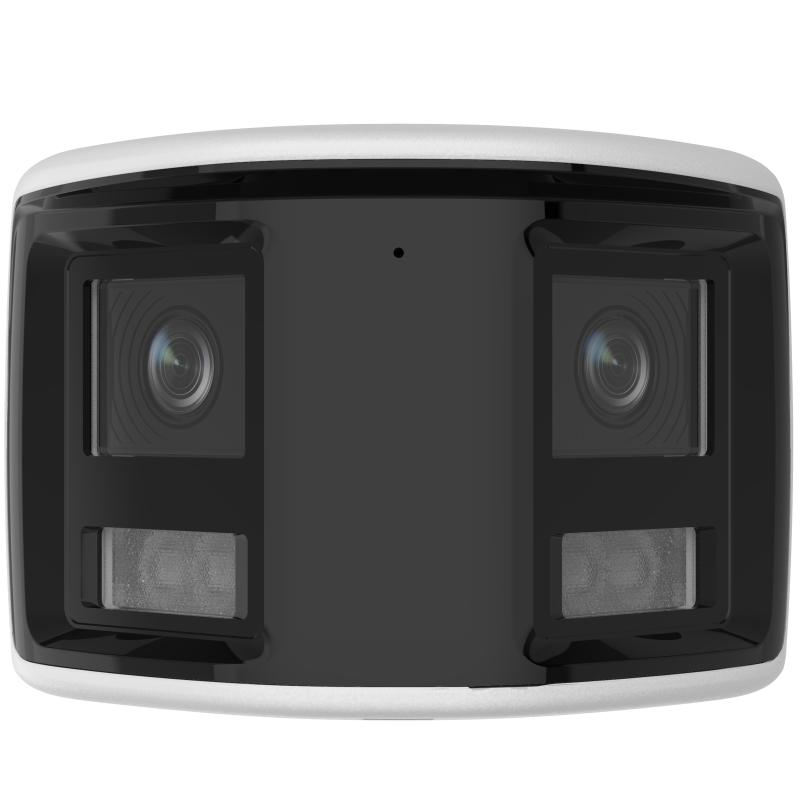

• Dual-lens design, built-in stitching algorithm, presenting a 180-degree image
• High-quality imaging with 3K, 3328 × 1504 resolution
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Up to 40 m white light and 40 m IR distance for bright night imaging
• Built-in mic, high-quality audio with audio over coaxial cable
• Water and dust resistant (IP67)

Camera

• Max. Resolution3328 (H) × 1504 (V)
• Shutter Time1/20 s to 1/50,000 s
• Image Sensor3K CMOS
• Slow Shutter ax. 16 times
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Lens

• Lens Type2.8 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
• Lens MountM12

Illuminator

• Supplement Light Range IR: Up to 40 m, White Light: Up to 40 m
• Smart Supplement Light Yes


• Frame Rate3K @20 dual
• Privacy Mask4 programmable privacy masks
• Wide Dynamic Range (WDR)≥130 dB
• Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
• Day/Night Mode Auto
• White Balance Auto/Manual
• Image Enhancement WDR; BLC; HLC; Global
• Noise Reduction3D DNR
• Image Settings Brightness; Contrast; Smart IR; Sharpness; Anti-Banding; AGC

Interface

• Video Output1 HD analog output
• Built-in Microphone Yes

Event

• Motion Detection4 programmable motion areas

General

• Power

  12 VDC ± 25%, max. 8.9 W

  *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.

• Language English
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
• Material Front cover: Metal, Main body: Plastic
• Communication HIKVISION-C
• Dimension234.46 mm × 103.58 mm × 76.01 mm (9.23″ × 4.08″ × 2.99″)
• Whitepox. 630 g (1.39 lb.)

Approval

• ProtectionIP67
