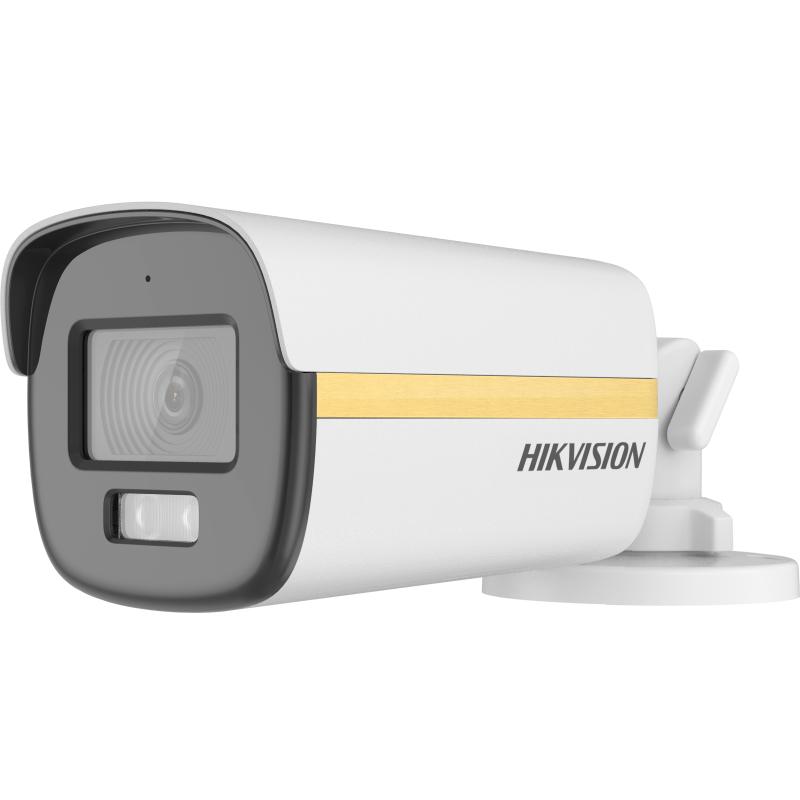

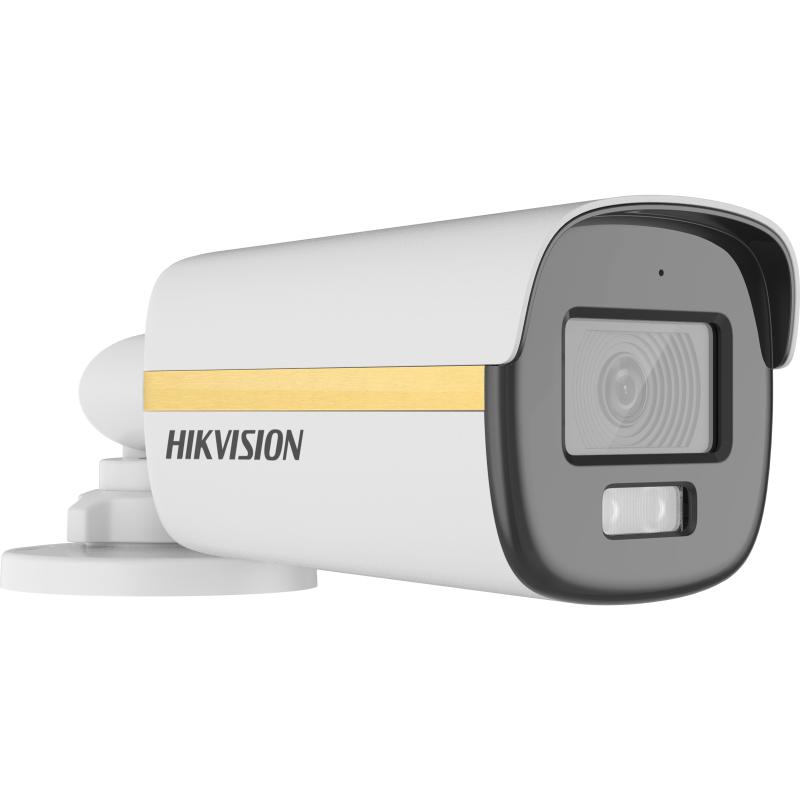

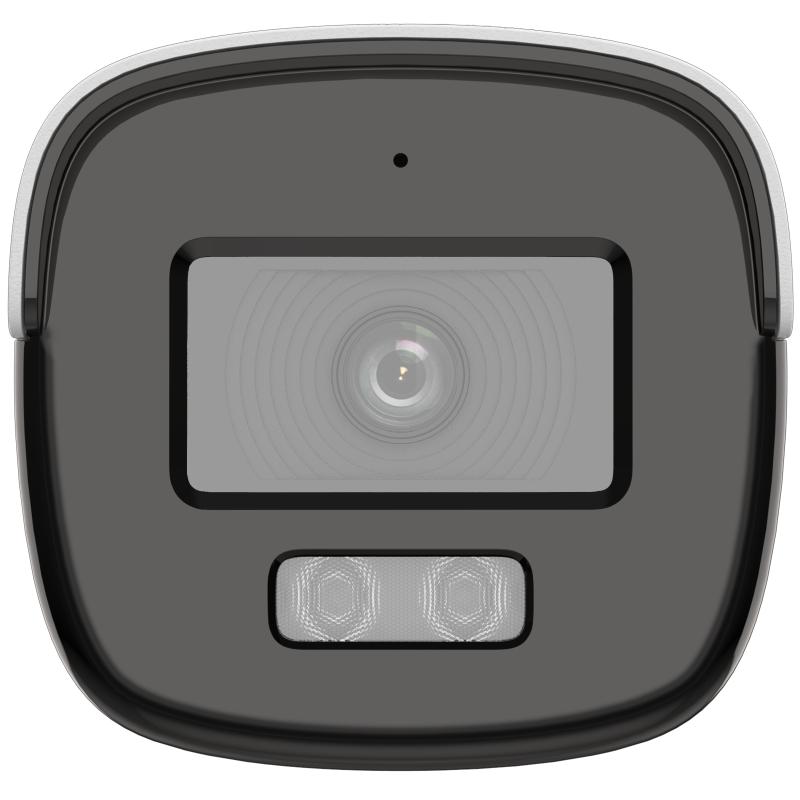

Hikvision 2MP ColourVu Dual Light Fixed Bullet Camera DS-2CE12DF3T-LFS 3.6mm

Key Feature

• High-quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Up to 40 m IR distance for bright night imaging
• High-quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Camera

• Image Sensor: 2MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Slow Shutter: Max. 16 times
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Day & Night: ICR
• Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
• Signal System: PAL/NTSC
• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Lens

• Lens Type: 2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°

  3.6 mm, horizontal FOV: 85°, vertical FOV: 46°, diagonal FOV: 98°

• Lens Mount: M12

Illuminator

• Supplement Light Type

  IR, White Light

• Supplement Light Range: IR: Up to 40 m, White Light: Up to 40 m
• Smart Supplement Light: Yes


• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• Image Settings

  Brightness, Contrast, Sharpness, Anti-banding, AGC

• Frame Rate

  TVI: 1080p @30 fps, 1080p @25 fps

  AHD: 1080p @30 fps, 1080p @25 fps

  CVI: 1080p @30 fps, 1080p @25 fps

  CVBS: PAL/NTSC

• Day/Night Mode: Auto
• Wide Dynamic Range (WDR): ≥130 dB
• Image Enhancement

  WDR, BLC, HLC, Global, HLS

• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: 3D DNR
• White Balance

  Auto, Manual

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS
• Alarm: Solid Light Alarm (White Light)
• Built-In Microphone: Yes

Event

• Motion Detection: 4 programmable motion areas

General

• Power

  12V DC ± 25%, max. 6.9 W

  *You are recommended to use one power adapter to supply the power for one camera.

• Material: Metal
• Dimension: 194.19 mm × 78.01 mm × 74.46 mm (7.65″ × 3.07″ × 2.93″)
• Weight: Approx. 530 g (1.17 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
• Communication: HIKVISION-C
• Language: English

Approval

• Protection: IP67
